Using Saved Artifacts

Overview

In the last section, you learned how to save task outputs as artifacts. Now, you will take the next step: using a saved artifact as input in a new workflow.

This is done through artifact parameters. They behave like Entrypoint parameters, but instead of being set at job creation, they are loaded from disk. You can then reference them throughout the task graph.

Using Saved Artifacts in an Entrypoint Task Graph

In this example, you will build a new workflow that:

• Loads a NumPy array artifact that was saved from the last tutorial step

• Applies multiple rescaling methods

• Visualizes the results with Matplotlib

• Saves the resulting PNG file as a new artifact

To accomplish this, you’ll need to perform the following:

1. Create a new Artifact Handler that is capable of serializing Matplotlib figures to PNG files

2. Define a new Plugin that reads in a Numpy array as an input and produces a Matplotlib figure as an artifact

3. Define a new Entrypoint to use the new plugin and new artifact handler

Once all that is done, we can run a job for this Entrypoint and select the previously saved NumPy Array as the Artifact Input Parameter.

Workflow

Step 1: Add two New Plugin Parameter Types

You’ll use the python dict type and the bytes type in your next Function Task and Artifact Task, so go ahead and add them now:

1. Go to the Plugin Parameters tab.

2. Create two new types:

   1. Type one: Called dict (for a Python dictionary type object)

   2. Type two: Called bytes (for a raw PNG image)

3. For each type, add the name an a short description, then click Submit.

Step 2: Create the “rescale_and_graph_array” Plugin

You want to create a plugin that utilizes a saved numpy array as an input.

1. Go to the Plugins tab and click Create Plugin.

2. Name it rescale_and_graph_array and add a short description.

3. Open the Plugin. Create a new file named rescale_and_graph_array.py.

4. Copy and paste the code below.

5. Import the functions via Import Function Tasks. Fix any types as needed.

rescale_and_graph_array.py

import matplotlib.pyplot as plt
import numpy as np
import structlog
import io

from dioptra import pyplugs

LOGGER = structlog.get_logger()

def _as_1d_float_array(arr) -> np.ndarray:
    a = np.asarray(arr, dtype=float).ravel()
    if a.size == 0:
        raise ValueError("input_array is empty.")
    return a

@pyplugs.register
def scale_array(input_array: np.ndarray) -> dict:
    """Return a dict of rescaled arrays using z-score, min-max, and log1p methods."""

    x = _as_1d_float_array(input_array)
    out = {}

    # Z-score scaling
    mu, sigma = np.mean(x), np.std(x)
    if sigma == 0.0:
        out["zscore"] = np.zeros_like(x)
    else:
        out["zscore"] = (x - mu) / sigma

    # Min-max scaling (to [0, 1])
    xmin, xmax = np.min(x), np.max(x)
    if xmax == xmin:
        out["minmax"] = np.full_like(x, 0.5)
    else:
        out["minmax"] = (x - xmin) / (xmax - xmin)

    # Log1p scaling (nonlinear, requires non-negative values)
    if np.any(x < 0):
        LOGGER.warn("scale_array_dict.log1p_negative", msg="Negative values present; log1p not applied.")
    else:
        out["log1p"] = np.log1p(x)

    return out

@pyplugs.register
def visualize_rescaling_multi(
    original_array: np.ndarray,
    rescaled_dict: dict,
    title: str = "Original vs Multiple Rescalings",
) -> bytes:
    """Compare multiple rescaling methods with scatterplots and stats."""

    x = _as_1d_float_array(original_array)

    # Reorder dict to put minmax first if present
    methods = list(rescaled_dict.keys())
    if "minmax" in methods:
        methods = ["minmax"] + [m for m in methods if m != "minmax"]

    # Compute global y-limits across all rescaled arrays
    all_y = np.concatenate([_as_1d_float_array(rescaled_dict[m]) for m in methods])
    y_min = np.min(all_y)
    y_max = np.max(all_y)
    y_lim = (y_min, 1.1 * y_max)

    n_methods = len(methods)
    fig, axes = plt.subplots(1, n_methods, figsize=(5 * n_methods, 5), sharex=False, sharey=False)

    if n_methods == 1:
        axes = [axes]  # make iterable

    for ax, method in zip(axes, methods):
        y = rescaled_dict[method]
        # Truncate to shared length
        n = int(min(x.size, y.size))
        x_plot, y_plot = x[:n], y[:n]

        # Regression fit
        coef = np.polyfit(x_plot, y_plot, deg=1)
        slope, intercept = coef
        xx = np.linspace(np.min(x_plot), np.max(x_plot), 200)
        yy = np.polyval(coef, xx)

        # Scatter + regression
        ax.scatter(x_plot, y_plot, s=12, alpha=0.6, label="data")
        ax.plot(xx, yy, color="black", lw=1.2, label="regression")

        # Stats
        stats = (
            f"n_obs: {n}\n"
            f"min: {np.min(x_plot):.2f} → {np.min(y_plot):.2f}\n"
            f"max: {np.max(x_plot):.2f} → {np.max(y_plot):.2f}\n"
            f"mean: {np.mean(x_plot):.2f} → {np.mean(y_plot):.2f}\n"
            f"median: {np.median(x_plot):.2f} → {np.median(y_plot):.2f}\n"
            f"std dev: {np.std(x_plot):.2f} → {np.std(y_plot):.2f}\n"
            f"regression: y = {slope:.3f}·x + {intercept:.3f}"
        )

        ax.set_xlabel("Original")
        ax.set_ylabel(method)
        ax.set_title(method)
        ax.set_ylim(y_lim)  # unified y-limits
        ax.grid(True, alpha=0.3)
        ax.legend(fontsize=8, loc="upper left")
        ax.text(
            0.98, 0.02, stats,
            transform=ax.transAxes,
            va="bottom", ha="right", fontsize=8,
            bbox=dict(facecolor="white", alpha=0.7, edgecolor="none")
        )

    fig.suptitle(title)
    fig.tight_layout()

    buf = io.BytesIO()
    fig.savefig(buf, format='png')
    plt.close(fig)
    return buf.getvalue()

6. Click Submit File

Note

This plugin defines two new tasks:

• scale_array: to rescale the input array three different ways.

• visualize_rescaling_multi: to visualize all the rescaled arrays.

Step 3: Add Another Artifact Task

Your second plugin task outputs a Matplotlib figure as a PNG image. To view this output, you need to save it as an artifact. You will add a new artifact plugin task that serializes a Matplotlib object as a PNG.

1. In the Plugins tab, open your artifacts Plugin from the previous tutorial step.

2. Add the new artifact plugin class code to the bottom of the file to define PngBytesArtifactTask.

3. Register it in your plugin the same way as the NumpyArrayArtifactTask (see Step 2: Register Artifact Task).

   • Name: PngBytesArtifactTask

   • Output Parameters - Name: output

   • Output Parameters - Type: bytes

Add this class to the bottom of the file:

artifacts.py (add to bottom)

# Paste this after the definition of 'NumpyArrayArtifactTask'
class PngBytesArtifactClass(ArtifactTaskInterface):
    """Save PNG bytes in working_dir and return the PNG path. Deserialize returns PNG bytes."""

    @staticmethod
    def serialize(working_dir: Path, name: str, contents: bytes, **kwargs) -> Path:
        """Writes raw PNG bytes to disk."""
        png_path = (working_dir / name).with_suffix(".png")

        # Write the incoming bytes directly to the file
        with open(png_path, "wb") as f:
            f.write(contents)

        return png_path

    @staticmethod
    def deserialize(working_dir: Path, path: str, **kwargs) -> bytes:
        """Reads raw PNG bytes from disk."""
        png_file_path = working_dir / path
        with open(png_file_path, "rb") as f:
            png_data = f.read()
        return png_data

    @staticmethod
    def validation() -> dict[str, Any] | None:
        return None

then register the Artifact Task

6. Click Submit File to save your changes to artifacts.py

Step 4: Create “rescale_and_graph_array” Entrypoint

Now define a new Entrypoint that loads the array, transforms it, and saves the plot.

1. Go to the Entrypoints tab.

Note

Dioptra saves Snapshots of Resources each time Resources are modified. If an Entrypoint is referencing an old Plugin snapshot, Dioptra will warn you. Feel free to sync this Plugin now or to ignore this warning - it is irrelevant for this portion of the tutorial.

2. Click Create Entrypoint.

3. Name the new Entrypoint rescale_and_graph_array_ep. Attach tensorflow-cpu as a Queue and provide a description.

Add Parameters:

4. In the Entrypoint Parameters box, add:

   • Name: figure_title

   • Type: string

   • Default: "Comparing rescaling methods plot"

5. In the Artifact Parameters box, add the input parameter:

   • Artifact parameter name: artifact_input_array

   • Output parameter name: output

   • Output parameter type: NumpyArray

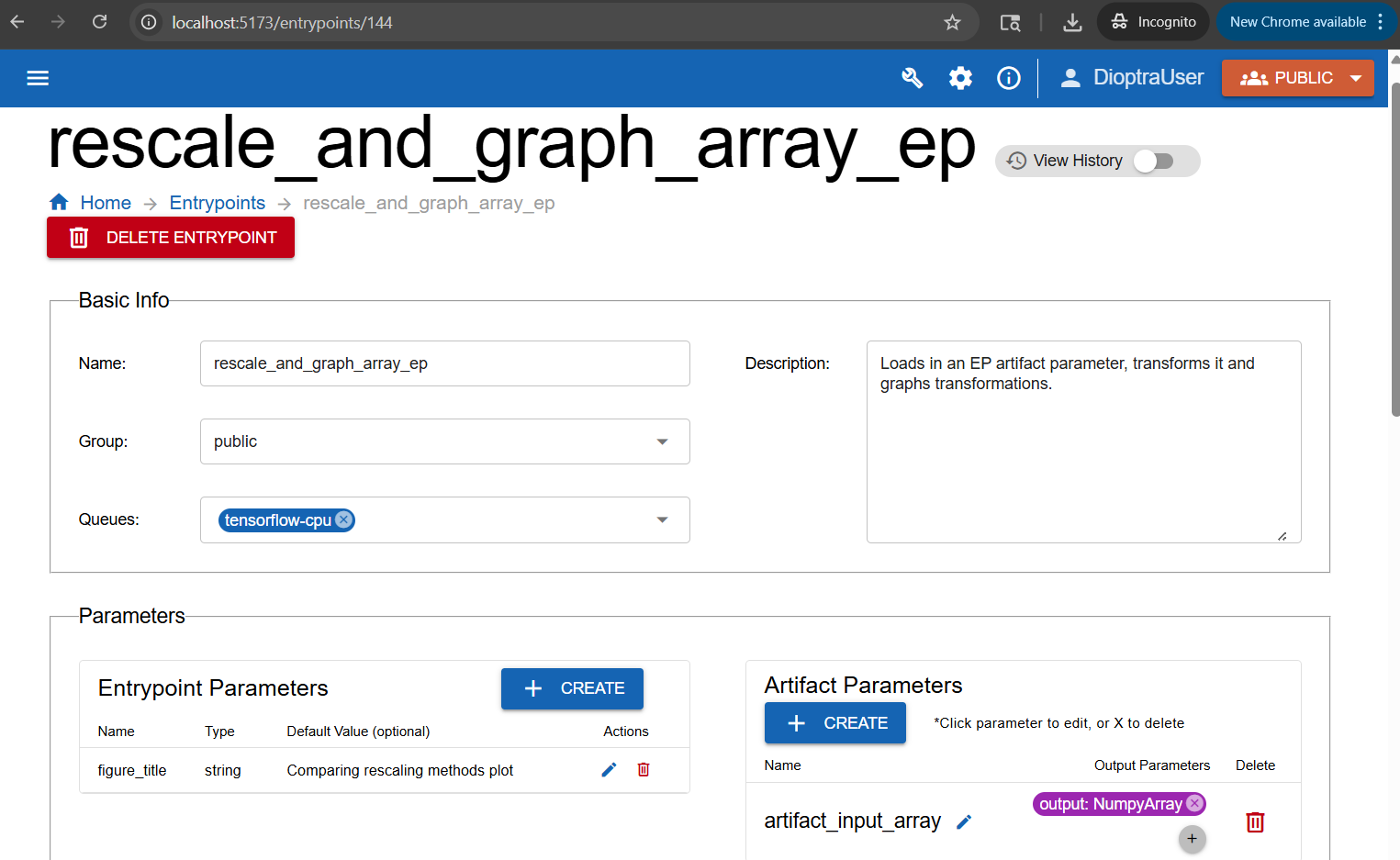

Create one Entrypoint parameter and one artifact parameter.

Note

The specific artifact instantiated for a given artifact Entrypoint parameter is decided at job runtime.

Define Task Graph:

6. In the Task Plugins and Artifact Task Plugins windows, select the relevant plugins.

   • Task Plugins: rescale_and_graph_array

   • Artifact Task Plugins: artifacts

7. Copy the Task Graph YAML below into the Task Graph editor.

rescale_and_graph_array_ep: Task Graph YAML

scale_step:
  task: scale_array
  args: [$artifact_input_array] # This comes from our Artifact Inputs

viz_step:
  task: visualize_rescaling_multi
  args: [$artifact_input_array, $scale_step.output] # Reusing the artifact input, as well as the output of task 1
  kwargs:
    title: $figure_title # A regular entrypoint parameter

Note

Note the reference to $artifact_input_array in the task graph. This is referencing the loaded artifact.

Define Artifact Output Graph:

8. Copy the Artifact Output Graph YAML below and paste it into the code editor for the Artifact Output Graph. It saves the generated matplotlib figure from step 2.

rescale_and_graph_array: Artifact Output Task Graph YAML

save_graph:
  contents: $viz_step
  task:
    name: PngBytesArtifactClass

Showing how the Artifact Input Parameter is used in the task graph to produce a new output (a Matplotlib figure) which is then saved in the Artifact Output Graph

9. Click Validate Inputs - it should pass.

10. Click Submit Entrypoint.

Step 5: Create Experiment and Run a Job

Finally, test it out.

1. Create a new Experiment named Rescale and Graph Array Exp. Add a description.

2. Add the rescale_and_graph_array_ep entrypoint. Click Submit Experiment.

3. Under this new experiment, create a new job.

4. Select the correct Entrypoint (rescale_and_graph_array_ep) and add a description for the Job run.

5. Under the Artifact Parameters box, select the Artifact generated from the previous step.

6. Click Submit Job.

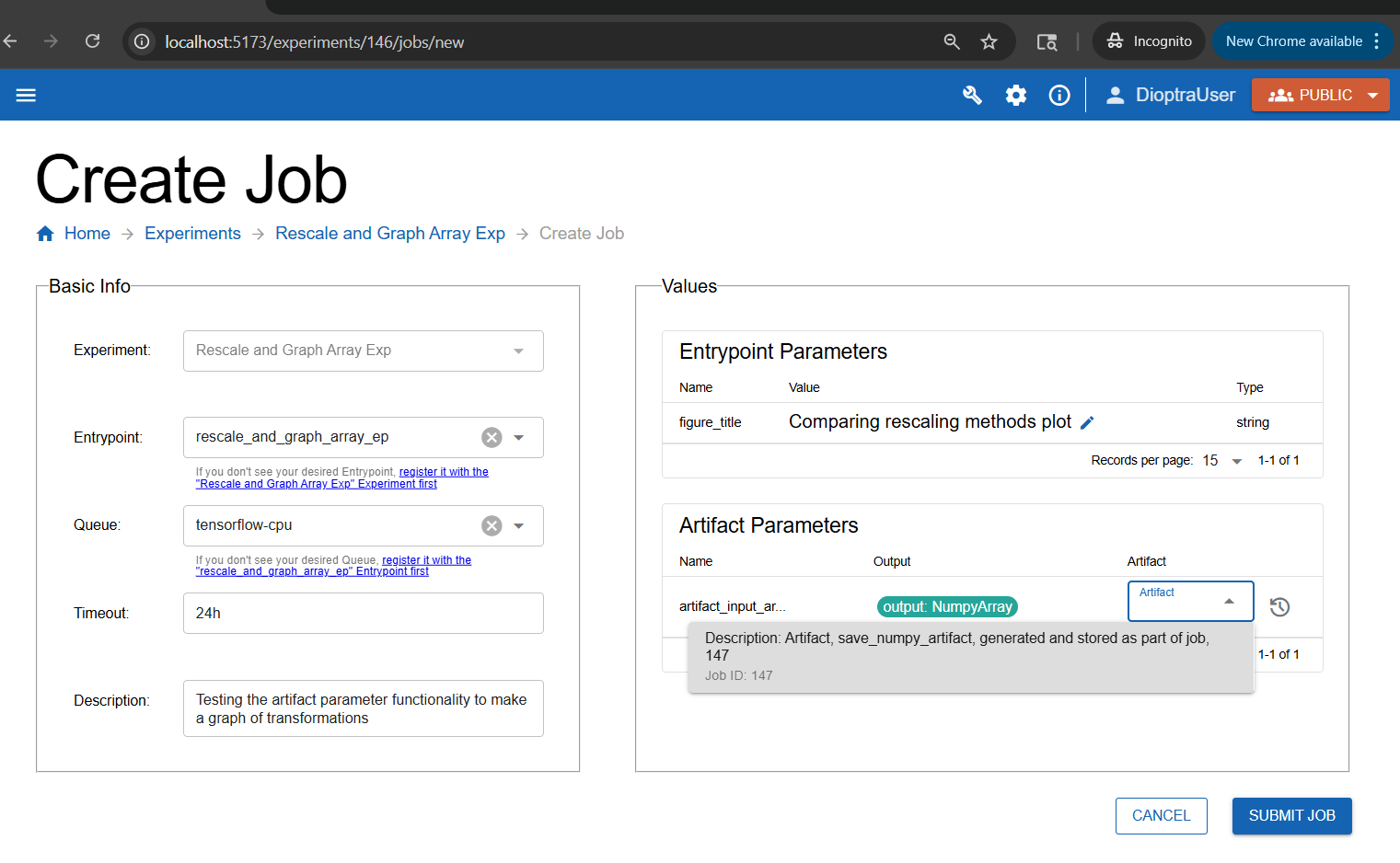

Selecting the input artifact at runtime.

Step 6: Inspect Results

After running the job, open the Job and download the Output Artifact - it should be a PNG file that was saved from your Entrypoint.

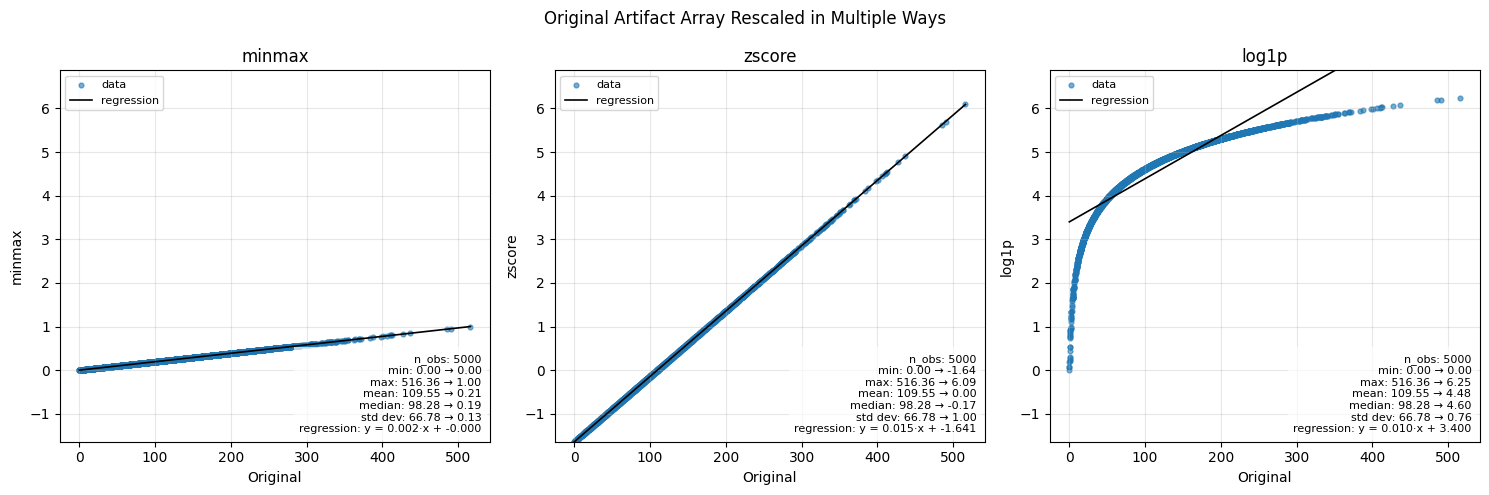

Artifact Output from rescale_and_graph_array_ep:

The artifact that was generated from this Entrypoint - a Matplotlib figure showing the various rescaling methods.

The original NumPy array artifact from the the previous workflow ranged from roughly 0 to 500+. Here’s how the three scaling methods reshape it:

• Min-Max Scaling: Linearly maps values into [0,1], preserving relative spacing.

• Z-Score Scaling: Centers data at 0 with unit variance; shows distance from the mean.

• Log1p Scaling: Nonlinear compression; reduces the impact of large values and outliers.

Conclusion

You now know how to:

• Create Entrypoints that use artifact parameters as inputs

• Chain workflows together across experiments using artifacts

Tutorial complete! You’re now ready to design your own workflows in Dioptra by combining multiple plugins, artifacts, and experiments.

Keep Learning

This tutorial demonstrated the core functionalities of Dioptra. To see more interesting and complicated uses of these capabilities, view the advanced tutorials which utilize the Python Client for more complex workflows.
