Building a Multi-Step Workflow#

Overview#

So far, you have built plugins with a single task and connected them to an entrypoint. Now, you will extend the idea further by creating a Plugin with multiple registered Tasks and chaining those tasks together in an Entrypoint.

This will let you:

  • Register multiple Python functions as tasks in one plugin

  • Reference outputs of earlier tasks as inputs for later tasks

  • Repeat tasks with different inputs

  • See how multiple steps can be chained together to make a data generation workflow

You will run the workflow once and inspect how the data evolves across multiple steps.

Workflow#

Step 1: Make “sample_and_transform” Plugin#

The sample_and_transform plugin will include multiple functions, each registered as a plugin task. Other than containing more functions, you will create the plugin the same way as before.

The tasks include:

  1. sample_normal_distribution: sample a NumPy array

  2. add_noise: perturb the array with additive noise sampled from a normal distribution

  3. nonlinear_transform: apply a configurable transformation (e.g. square each value)

  4. print_stats: log mean, variance, min, max of the current state of the array

Plugin Creation Steps

  1. Go to the Plugins tab and click the Create button in the Plugins table.

  2. Name it sample_and_transform and add a short description.

  3. Open the Plugin you just created and then click Create to add a new file. Name the file sample_and_transform.py, add a description, then paste the Python code code below into the code editor.

  4. Import functions via Import Function Tasks (same as in Step 3: Register the Task). Fix any Parameter Type errors as needed.

sample_and_transform.py

import numpy as np
import structlog

from dioptra import pyplugs

LOGGER = structlog.get_logger()

def sqrt(num:float)->float:
  return np.sqrt(num)

@pyplugs.register
def sample_normal_distribution(
              random_seed: int = 0,
              mean: float = 0,
              var: float = 1,
              sample_size: int = 100)-> np.ndarray:
  if var<=0:
      LOGGER.warning(f"Variance {var} must be greater than 0 - defaulting to variance=1")
      var=1
  rng = np.random.default_rng(seed=random_seed)
  std_dev = sqrt(var)
  draws = rng.normal(loc=mean, scale=std_dev, size=sample_size)
  return draws


@pyplugs.register
def add_noise(input_array: np.ndarray,
              random_seed: int = 0,
              noise_type: str = 'normal', # Options: normal, uniform
              var:float = 1,
              mean:float = 0,
              )-> np.ndarray:
    rng = np.random.default_rng(random_seed)
    if var<=0:
        LOGGER.warning(f"Variance {var} must be greater than 0 - defaulting to variance=1")
        var=1
    if noise_type == "normal":
        std_dev = sqrt(var)
        noise = rng.normal(loc=mean, scale=std_dev, size=len(input_array))
    elif noise_type == "uniform":
        a = np.sqrt(3 * var)
        noise = rng.uniform(low=-a, high=a, size=len(input_array))
    else:
        raise ValueError(f"Unsupported noise_type: {noise_type}")

    return input_array + noise

@pyplugs.register
def nonlinear_transform(input_array: np.ndarray,
                        transform: str = "square") -> np.ndarray:

    if transform == "square":
        return input_array ** 2
    elif transform == "log":
        return np.log1p(input_array - np.min(input_array) + 1)
    elif transform == "tanh":
        return np.tanh(input_array)
    else:
        raise ValueError(f"Unsupported transform: {transform}")

@pyplugs.register
def print_stats(input_array: np.ndarray, plugin_step_name: str) -> None:
    arr_mean = float(np.mean(input_array))
    arr_std = float(np.std(input_array))
    arr_min = float(np.min(input_array))
    arr_max = float(np.max(input_array))
    arr_len = int(len(input_array))

    LOGGER.info(
        f"Plugin Task: '{plugin_step_name}' - "
        f"The mean value of the array after this step was {arr_mean:.4f}, "
        f"with std={arr_std:.4f}, min={arr_min:.4f}, max={arr_max:.4f}, len={arr_len}."

    )

  1. Click Submit File to save the Plugin file.

Step 2: Create “sample_and_transform” Entrypoint#

The sample_and_transform_ep entrypoint will demonstrate a multi-step task graph. You will be able to pass arrays from one task to the next and re-use the print_stats task multiple times.

Entrypoint Creations Steps

  1. Create a new entrypoint named sample_and_transform_ep. Add a description and attach the tensorflow-cpu Queue.

  2. Under the Entrypoint Parameters window, add the four parameters listed below, ensuring you select the correct types (integer, float, float, string).

Parameters for this entrypoint:

  • sample_size (integer)

  • mean (float)

  • var (float)

  • transform_type (string)

Note: Turn off the default value option for all of these Entrypoint Parameters.

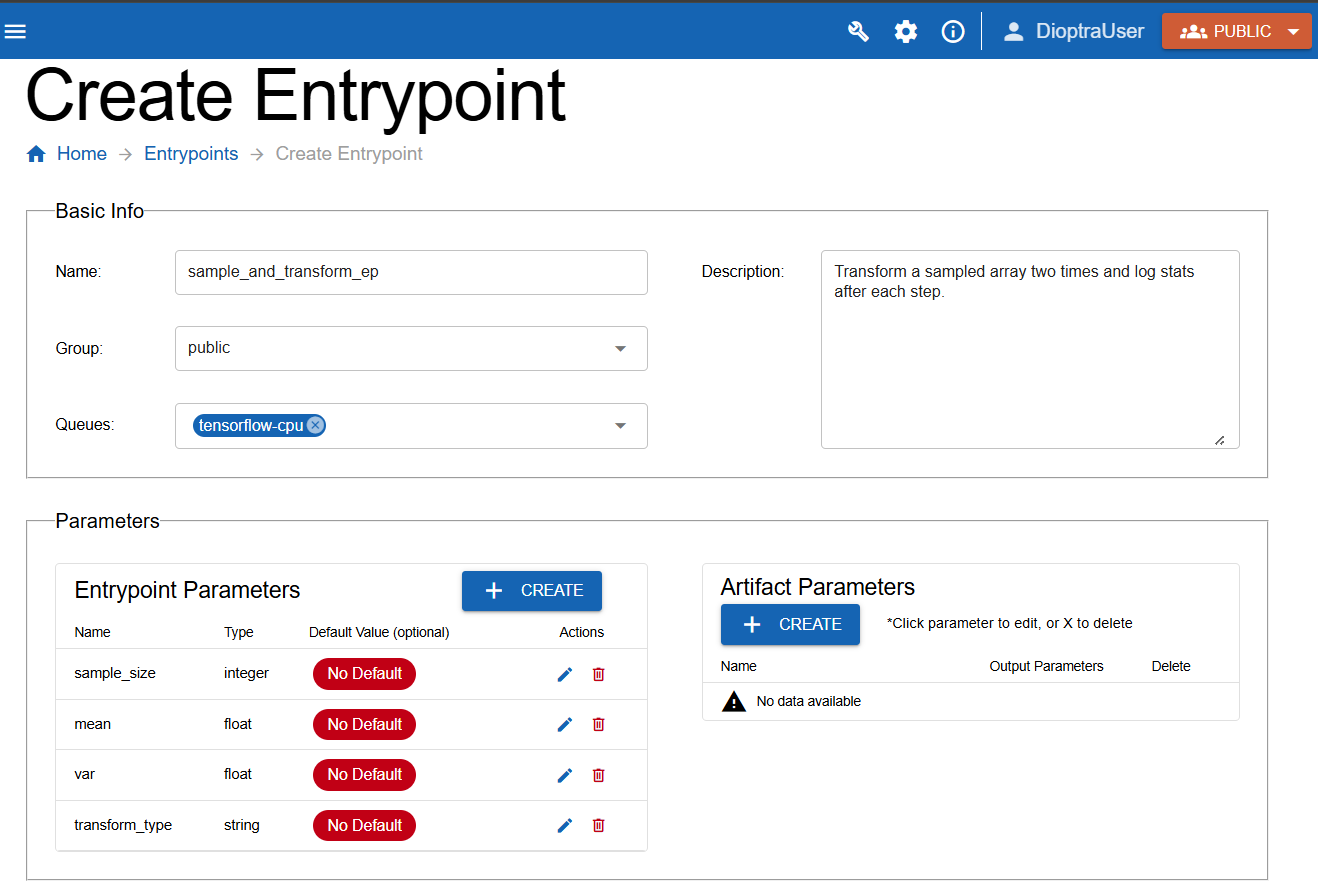

Screenshot of the sample_and_transform_ep parameters window.

Defining entrypoint parameters to use in the task graph.#

Step 3: Build the Task Graph#

You are going to build a task graph with six steps:

  1. draw_normal (generates draws)

  2. print_stats (logs stats from the output of step 1)

  3. add_noise (adds noise to draws from step 1)

  4. print_stats (logs stats from the output of step 3 - the array with added noise)

  5. transform (applies chosen transform to the output from step 3)

  6. print_stats (logs stats from the output of step 5 - the transformed array)

Key ideas:

  • Reference outputs of earlier tasks (e.g., use output from step 1 as input to step 2).

  • Re-use the same task (print_stats) multiple times with different inputs.

Steps

  1. Go to Task Graph Info.

  2. Select sample_and_transform in the plugins list.

  3. Paste the following YAML code into the editor:

Sample and Transform: Task Graph YAML

draw_samples:
  task: sample_normal_distribution
  args: []
  kwargs:
    random_seed: 0
    mean: $mean # User parameter
    var: $var # User parameter
    sample_size: $sample_size # User Parameter

log_stats_1:
  task: print_stats
  args: []
  kwargs:
    input_array: $draw_samples.output # This is the output from Task 1
    plugin_step_name: "Task 1: Drawing from normal distribution"

add_noise_step:
  task: add_noise
  args: []
  kwargs:
    input_array: $draw_samples.output # This is the output from Task 1
    random_seed: 0
    var: 10
    mean: 0
    noise_type: normal

log_stats_2:
  task: print_stats # Invoking this plugin task again with different input_array
  args: []
  kwargs:
    input_array: $add_noise_step.output # This is the output from Task 3
    plugin_step_name: "Task 2: Adding Noise"

transform_step:
  task: nonlinear_transform
  args: []
  kwargs:
    input_array: $add_noise_step.output
    transform: $transform_type # User Parameter

log_stats_3:
  task: print_stats # Invoking this plugin task a third time
  args: []
  kwargs:
    input_array: $transform_step.output # This is the output from Task 5
    plugin_step_name: "Task 3: Transforming the array"

Note

The output of all the tasks is simply called output. This can be changed during plugin task registration if desired.

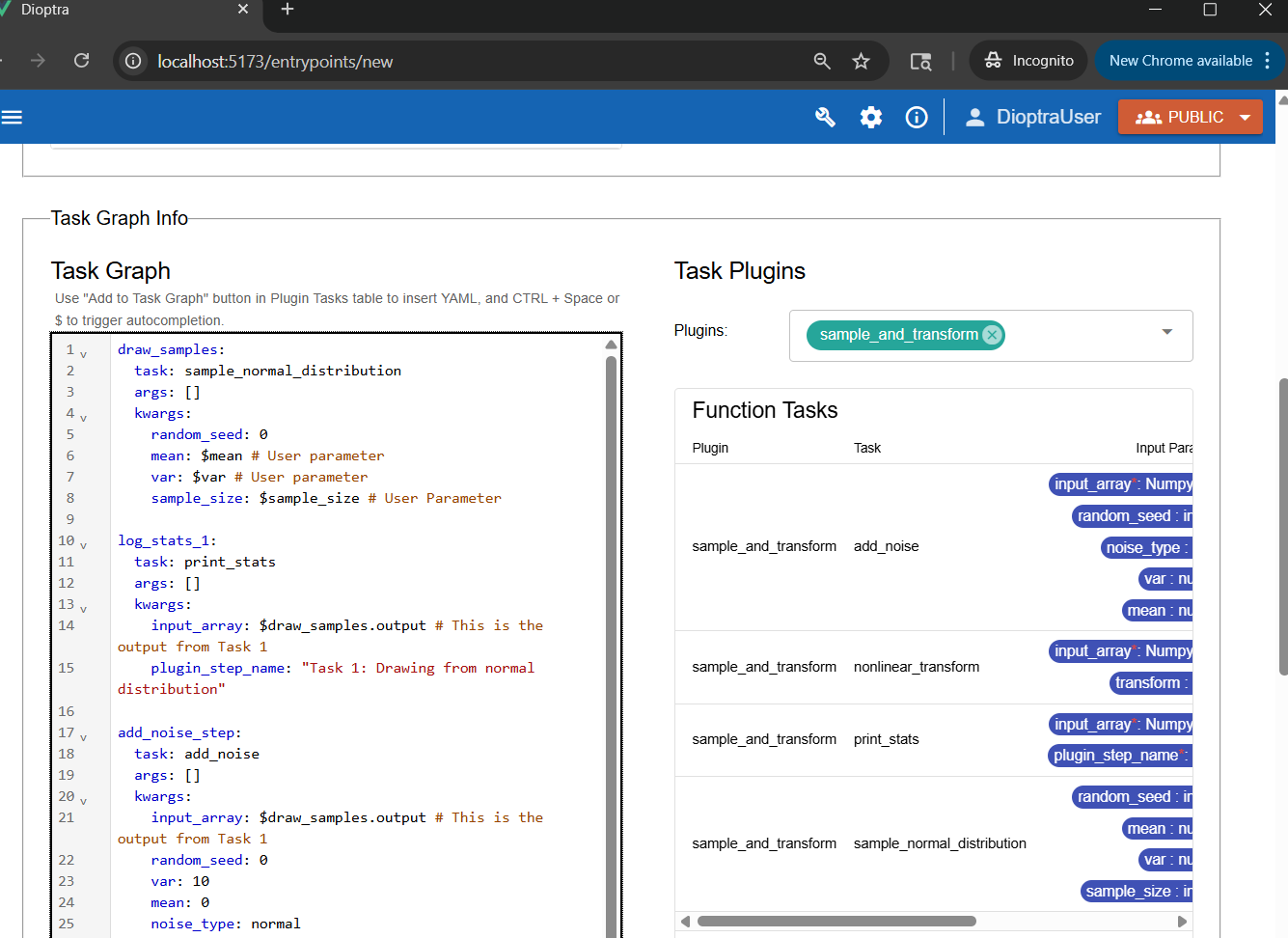

Screenshot of a multi-step task graph for Entrypoint 3.

Multi-step task graph that repeats Plugin Task “print_stats” three times, each utilizing a different output array.#

Note

Notice how the $ syntax is used to reference both entrypoint parameters AND the output of plugin tasks.

  1. Click Validate Inputs - it should pass

  2. Click Submit Entrypoint.

Step 4: Create Experiment#

Because this workflow is conceptually different, make a new experiment for organizational purposes.

Steps

  1. Navigate to Experiments and click Create.

  2. Name the new Experiment Sample and Transform Exp. Add a description.

  3. Add the sample_and_transform_ep entrypoint to the experiment.

  4. Click Submit Experiment.

Step 5: Run a Job#

It’s time to execute the multi-step workflow.

  1. Go to the Jobs tab and click Create.

  2. Select Sample and Transform Exp for the Experiment and sample_and_transform_ep for the Entrypoint.

  3. Choose parameter values, for example:

    • sample_size = 1000

    • mean = -5

    • var = 10

    • transform_type = “square”

  4. Add a Description, then click Submit Job.

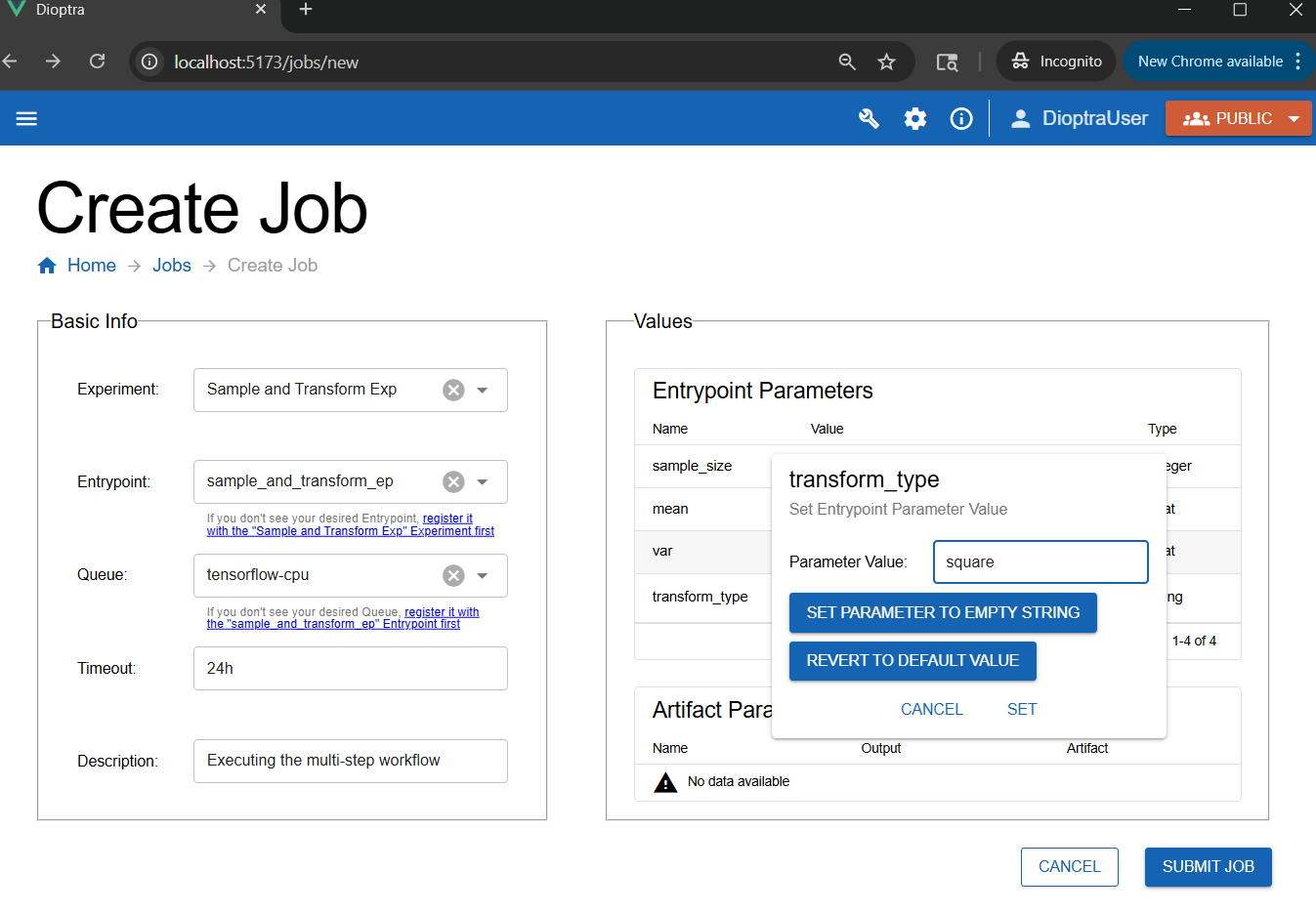

Creating a job that uses entrypoint 3 with specific parameters.

Creating a new job - any parameter that does not have a default value needs to have one provided at Job runtime.#

Step 6: Inspect Results#

After the job finishes, check the logs to see the statistics evolve.

Job Log Outputs

Plugin Task: 'Task 1: Drawing from normal distribution' - The mean value of the array after this step was -5.1519, with std=3.0888, min=-17.3311, max=4.6957, len=1000.

Plugin Task: 'Task 2: Adding Noise' - The mean value of the array after this step was -5.3038, with std=6.1775, min=-29.6621, max=14.3913, len=1000.

Plugin Task: 'Task 3: Transforming the array' - The mean value of the array after this step was 66.2917, with std=89.4162, min=0.0002, max=879.8407, len=1000.

Analysis:

  • After add_noise: min/max shift noticeably, variance increases, mean remains stable.

  • After transform (square): all values change, mean and variance increase dramatically, min shifts upward.

This illustrates how different modifications (noise, transforms) propagate through a data pipeline.

Conclusion#

You now know how to:

  • Register multiple tasks in a single plugin

  • Build a multi-step entrypoint task graph

  • Reference outputs and repeat tasks

  • Run experiments with complex workflows

Next, you will learn how to save the output of a task as an artifact.
