Guidelines for Documentation

This is a guide for Dioptra developers that details style and content guidelines for Sphinx documentation pages.

Dioptra documentation uses reStructuredText (.rst) with Sphinx. The documentation pages are located in docs/source/ and are built using the command uvx tox run -e web-compile,docs.

Exemplar Documentation Pages

The following pages serve as reference implementation for future documentation pages:

• Plugins Reference

• Create Plugins

• Plugins Explanation

• Tutorial: Hello World in Dioptra and Tutorial: Learning the Essentials

Documentation goals

• Brevity & placement. Put content where it belongs; avoid duplication across types.

• Single purpose per page. Don’t mix a tutorial with reference or explanation on the same page.

• Source of truth lives in code dirs. Bring example code in with literalinclude.

• Cross Reference Documentation. Don’t repeat information across pages - reference relevant complimentary materials using Sphinx cross references instead.

Documentation File Placement

This is the current proposed structure for storing documentation static assets.

Image Files

All images should be stored in docs/source/images/. Avoid storing images inside the specific documentation folders (e.g., avoid docs/source/tutorials/images).

Directory Structure

• Screenshots: Store screenshots in docs/source/images/screenshots/.

  • Organize these sub-folders roughly by the Vue/Quasar page they represent (e.g., jobs, plugins, experiments).

  • This structure allows screenshots to potentially be reused across different content types (e.g., using the same “Login” screenshot in both a Tutorial and a How-to).

  • It also makes identifying screenshots that require updates easier once a Quasar page changes.

• Figures: Store conceptual diagrams, architecture flows, and non-GUI visuals in docs/source/images/figures/.

docs/source/images/
├── screenshots/
│   ├── entrypoints/
│   ├── experiments/
│   ├── jobs/
│   ├── login/
│   ├── plugins/
│   └── ...
└── figures/
    ├── entrypoint_diagram.png
    ├── experiment_overview.png
    └── ...

Documentation Code Snippets

Code will ideally never be written inline on .rst pages. Whenever appropriate, the documentation should reference the doc strings for methods and classes. When bespoke code snippets are needed (i.e. for tutorial workflows, etc), place the code in the appropriate subdirectory directory under docs and use .. literalinclude:: to pull it in.

Directory Structure

Documentation code that is not meant to be run in production or in a standalone manner lives in docs/source/documentation_code/.

Within this directory:

• Client Workflows: Python scripts demonstrating the Python Client API (e.g., connecting, authenticating, submitting jobs).

• Plugins: Python files with plugin tasks and artifact tasks.

• Artifact Task Graphs: YAML files with artifact task graphs

• Task Graphs: YAML files with entrypoint task graphs

Current Directory Structure:

docs/source/documentation_code/
├── client_workflows/
│   ├── import_plugins.py
│   └── client_setup.py
├── artifact_task_graphs/
├── task_graphs/
└── plugins/
    ├── essential_workflows_tutorial
    └── hello_world_tutorial

Diátaxis content types

Content is organized according to the Diátaxis framework:

• Tutorials

• How-to guides

• Reference

• Explanation

The following principles apply the Diátaxis framework to Dioptra documentation:

Tutorials (learning by doing)

• Learn by doing

• Provide early wins for users with small accomplishments

• Tell readers upfront what to expect (“In this tutorial, you will build a plugin that…”)

• Give feedback along the way (“You should see…”)

• Minimize explanation — link out to other docs instead

How-to guides (solve a task)

• Cookbook style - a recipe / procedural workflow to accomplish a specific goal

• One outcome per page

• Concise, no digressions

Reference (facts)

• Precise, factual

• No steps or advice

• Covers APIs, schemas, configs, syntax, requirements, etc

Explanation (concepts & why)

• Provide background and rationale

• Cover trade-offs and mental models

• No steps

• “Read once” and then never read again (ideally)

Each documentation page should align with one of these types.

The Table of Contents headers reflect these types:

• “What is Dioptra” → Explanation

• “Setup” → How To

• “Explainers” → Explanation

• “Tutorials” → Tutorials

• “How Tos” → How To

• “Reference” → Reference

Style guide for RST documents

The following collection details styling components—custom-defined or provided by Sphinx—used in Dioptra documentation.

Note

Custom CSS

Custom CSS classes are defined in files in docs/assets/scss/ and imported into dioptra.scss. These scss files are compiled when the docs are built with uvx tox run -e web-compile,docs and create the resulting docs/source/_static/dioptra.css file.

Note

Custom JavaScript

Custom javascript code exists in docs/source/_static/. These assets are loaded via docs/conf.py using html_css_files and html_js_files to point to CSS and JS code in the _static directory.

Section hierarchy

Headings should be nested consistently.

• = for page title

• - for H2

• ~ for H3

• ^ for H4

Put these symbols under text to create a heading. The heading is automatically included in the right side table of contents.

Header Example:

.. _doc-type-doc-title-my-example-header:

My Example Header
-------------------

Section contents...

.. _doc-type-doc-title-my-example-subheader:

My Example Subheader
~~~~~~~~~~~~~~~~~~~~

Section contents .. (nested under "My Example Header" in ToC)

See also

See cross-references section below to understand cross reference labels used in this example.

Steps (Linkable Headers on a Card)

When documenting steps for a tutorial or how-to guide, make the step name a header and use two CSS classes to place the steps onto a card. This makes them linkable and easy to visually distinguish.

Custom CSS classes:

• header-on-a-card - puts the entire section on a card with slight padding and box shadow

• header-steps - Adds the blue clipboard to the header and the bottom border, and adjusts the header font size

RST Syntax: Steps

.. rst-class:: header-on-a-card header-steps

Example Step 1: Create the Plugin Container
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

1. Open **Plugins**.
2. Click **Create Plugin**.
3. Name it and **Save**.

   .. note:: Make sure you click save.

.. rst-class:: header-on-a-card header-steps

Example Step 2: Add a file
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

1. Click on the Plugin
2. Click **Add a File**
3. Click **Register Task** and create these inputs:

      * ``sample_size`` : int
      * ``mean`` : float

4. Click **Save**

.. admonition:: Learn More

   * :ref:`plugins-explanation` - Learn about plugins

Rendered Example: Steps

The above RST code is rendered below:

Example Step 1: Create the Plugin Container

1. Open Plugins.

2. Click Create Plugin.

3. Name it and Save.

   Note

   Make sure you click save.

Example Step 2: Add a file

1. Click on the Plugin

2. Click Add a File

3. Click Register Task and create these inputs:

   • sample_size : int

   • mean : float

4. Click Save

Learn More

• plugins-explanation - Learn about plugins

Notes for “Steps” styling

Note the following stylistic conventions when rendering steps:

• Use of bold to emphasize the concrete actions within a step (corresponds to buttons, etc)

• The creation of separating lines between header-steps classes is automatically done through a CSS rule

• You can nest other classes / structures within the header-steps & header-on-a-card class, but use sparingly.

  Items commonly nested on cards include:

  • .. admonition:: Learn More - Custom “learn more” override of the admonition box

  • .. note:: - Built in Sphinx blue Sphinx box that says “Note”

  • Indentation to create a block quote

Warning

Once you use a custom header-on-a-card class, the card container will continue until the next header. This is how .. rst-class:: header-on-a-card header-steps works - the styling wraps the entire next header in a styled div that continues until the next header.

“See Also” (Linkable Headers on a Card)

To create a prominent section of additional reading material, use the custom RST classes header-on-a-card combined with header-seealso. This will create a lightly indented card with a green header that also has an anchor link and appears in the HTML sidebar.

RST syntax: See Also

.. rst-class:: header-on-a-card header-seealso

See Also
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
This is a hands-on tutorial intended to walk a user through the procedural steps required to
use Dioptra. The following resources are complimentary and provide high level explanations on Dioptra's
design and motivation.

* :ref:`Overview of Experiments <explanation-experiments-and-jobs>` - A summary of how Dioptra components interact to create an experiment
* :ref:`Workflow Architecture <explanation-workflow-architecture>` - An overview of how all the high level Dioptra components orchestrate together to execute jobs.
* :ref:`Why Dioptra? <explanation-why-use-dioptra>` - An explanation of what Dioptra was built for

Rendered Example: See Also

See Also

This is a hands-on tutorial intended to walk a user through the procedural steps required to use Dioptra. The following resources are complementary and provide high level explanations on Dioptra’s design and motivation.

• Overview of Experiments - A summary of how Dioptra components interact to create an experiment

• Workflow Architecture - An overview of how all the high level Dioptra components orchestrate together to execute jobs.

• Why Dioptra? - An explanation of what Dioptra was built for

Notes, warnings, important, and “see also”

To caveat steps or reference explanation/reference material elsewhere, use notes, warnings, and the important flag. These divs are built in to Sphinx. While visually distinct, they utilize significant padding to indicate optional content. Use them sparingly for information that is not required reading.

RenderedRST Source

Note

This tutorial uses the web UI; you can do the same via API or TOML.

Warning

Make sure the queue is Public or jobs won’t start.

Important

In YAML, null is interpreted as the null value. Therefore, it does not name the null type!

See also

View the plugins-explanation for more information.

Nesting these elements in other cards or containers can result in visual clutter. Overusing these elements can result in visual clutter as well. These elements don’t provide anchor links, so don’t use them for major sections as they won’t be embedded in the table of contents.

Placing items in the margin

Important, note, warning and “see also” boxes can be placed in the margin with the following syntax.

Important

The NGINX SSL/TLS disabled and enabled tabs are just snippets. The snippets omit the lines that come both before and after the healthcheck: and ports: sections. Do not delete these surrounding lines in your actual file!

RST source code

.. margin::

   .. important::

      The NGINX SSL/TLS disabled and enabled tabs are just snippets.
      The snippets omit the lines that come both before and after the ``healthcheck:`` and ``ports:`` sections.
      **Do not delete these surrounding lines in your actual file!**

The Sphinx table of contents sidebar automatically collapses when it would be interfering with a box in the margins. On narrow screens, these elements are hidden and require horizontal scrolling.

“Learn More” - Minimalistic div for more information

Custom CSS rules were created to define a minimalistic presentation for extra information. This class overrides the admonition box when the title “Learn More” is added. The use of this class is preferred to the .. seealso:: built in Sphinx element when used inside another element.

RenderedRST Source

Learn More

View the plugins-explanation for more information.

This is similar to the .. seealso:: built in Sphinx box, but it has more minimal padding and is more appropriate to use nested inside other elements.

Shaded container for Table of Contents

Custom CSS rules were created to define a lightly shaded container with a larger width. This container is used for table of contents (TOC) elements in index pages, but could be reused for other elements as well.

RenderedRST Source

Table of Contents:

• Guidelines for Documentation

• /dev-guide/contributing-merge-request-guidelines

• /dev-guide/contributing-commit-styleguide

Page Contents / Local ToC

To preview the contents on a page in a Table of Contents container, use the .. contents:: component.

RenderedRST Source

View the top of this page to see this rendered.

Figures (screenshots)

Screenshots should be cropped and zoomed for readability. Always include :alt: text.

Custom CSS and JavaScript are available for images.

To apply this styling, use one or more of the following figure classes with :figclass::

• border-image → Adds a light border, shadow, and background

• clickable-image → Makes the image interactive with cursor + modal support

• big-image → Allows images to grow wider than the text column (experimental; CSS overrides may conflict with sidebar/layout changes — use sparingly)

Note

Modals are included by default through the addition of a div element in the layout.html footer.

RST Syntax: Image Classes

Screenshots that use combinations of these three CSS classes

On click, JavaScript shows the modal div element.

**Using** ``border-image`` **and** ``clickable-image``:

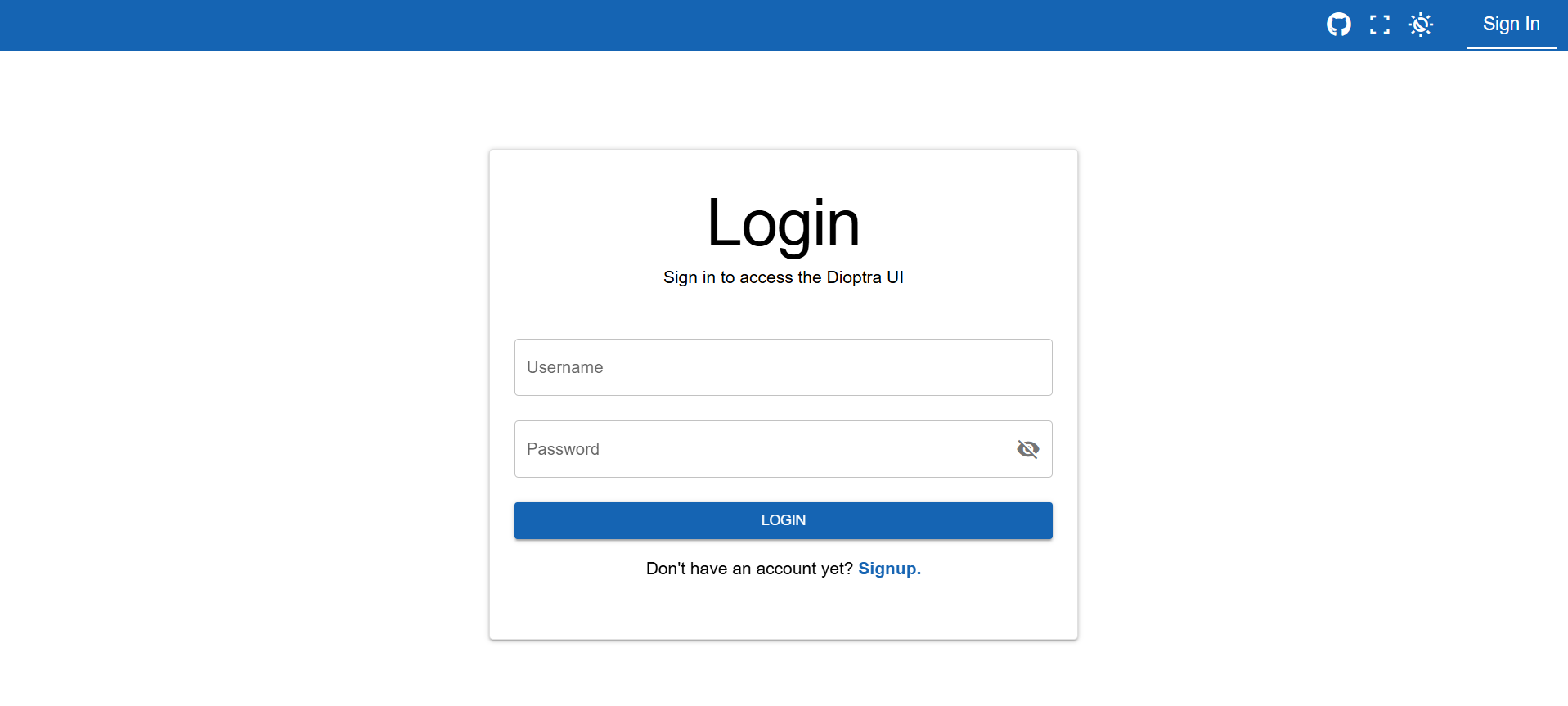

.. figure:: ../tutorials/hello_world/_static/screenshots/login_dioptra.png
   :alt: Dioptra login screen
   :figclass: border-image clickable-image

   Using the custom image class - clicking the image opens a modal.

**Using** ``big-image``, ``border-image`` **and** ``clickable-image``:

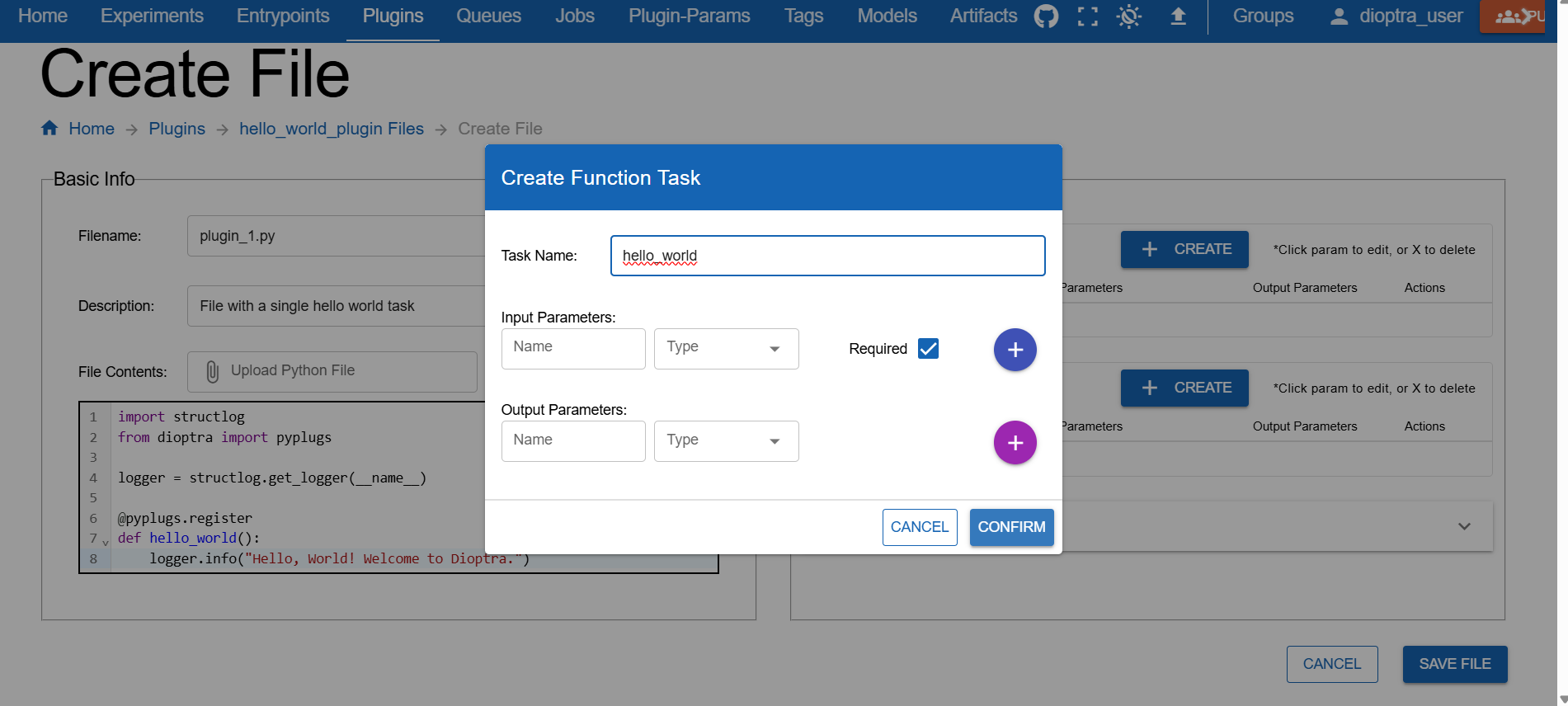

.. figure:: ../tutorials/hello_world/_static/screenshots/register_hello_world_task.png
   :alt: Dioptra login screen
   :figclass: border-image clickable-image big-image

   Using the ``big-image`` figclass - not recommended because it interferes
   with the HTML sidebar.

Rendered Examples: Image Classes

Using border-image and clickable-image:

Using the custom image class - clicking the image opens a modal.

Using big-image, border-image and clickable-image:

Using the big-image figclass - not recommended because it interferes with the HTML sidebar.

Warning

Making images larger than the text column with big-image is potentially fragile and relies on CSS workarounds. It may look odd with different sidebar widths or screen sizes. Prefer standard-sized images unless the extra width is necessary for readability.

Literal includes

Use literalinclude to pull code from the repo instead of pasting it:

RenderedRST Source

hello_world.py:

import structlog
from dioptra import pyplugs

logger = structlog.get_logger(__name__)

@pyplugs.register
def hello_world():
    logger.info("Hello, World! Welcome to Dioptra.")

Custom Code Block Styling

Custom CSS classes are available to style code blocks for improved visual separation and language-specific branding. Font size is also reduced to save space for long code blocks. Apply these classes using the standard Sphinx admonition directive.

Available Classes

Use the following classes with an .. admonition:: block:

• code-panel: The base class. This applies the custom box, rounded corners, shadow, and reduced font size.

• python: Applies the custom dark blue title bar, yellow border, and the >>> prompt prefix.

• yaml: Applies the custom dark brown title bar, dark border, and the >> prompt prefix.

• console: Applies custom dark theme and the $ prompt prefix.

RenderedRST Source

<My Python LiteralInclude>

import numpy as np
import structlog
from dioptra import pyplugs

LOGGER = structlog.get_logger()

# Helper function - not registered as a Dioptra plugin task
def sqrt(num:float)->float:
  return np.sqrt(num)

@pyplugs.register
def sample_normal_distribution_print_mean(
              random_seed: int = 0,
              mean: float = 0,
              var: float = 1,
              sample_size: int = 100) -> np.ndarray :

  rng = np.random.default_rng(seed=random_seed)
  std_dev = sqrt(var)
  draws = rng.normal(loc=mean, scale=std_dev, size=sample_size)
  draws_mean = np.mean(draws)
  diff = np.abs(mean-draws_mean)
  pct = 100*diff/mean

  LOGGER.info(
      "Plugin 2 - "
      f"The mean value of the draws was {draws_mean:.4f}, "
      f"which was {diff:.4f} different from the passed-in mean ({pct:.2f}%). "
      "[Passed-in Parameters]"
      f"Seed: {random_seed}; "
      f"Mean: {mean}; "
      f"Variance: {var}; "
      f"Sample Size: {sample_size};"
      )

  return draws

<My YAML LiteralInclude>

draw_samples:
  task: sample_normal_distribution
  args: []
  kwargs:
    random_seed: 0
    mean: $mean # User parameter
    var: $var # User parameter
    sample_size: $sample_size # User Parameter

log_stats_1:
  task: print_stats
  args: []
  kwargs:
    input_array: $draw_samples.output # This is the output from Task 1
    plugin_step_name: "Task 1: Drawing from normal distribution"

add_noise_step:
  task: add_noise
  args: []
  kwargs:
    input_array: $draw_samples.output # This is the output from Task 1
    random_seed: 0
    var: 10
    mean: 0
    noise_type: normal

log_stats_2:
  task: print_stats # Invoking this plugin task again with different input_array
  args: []
  kwargs:
    input_array: $add_noise_step.output # This is the output from Task 3
    plugin_step_name: "Task 2: Adding Noise"

transform_step:
  task: nonlinear_transform
  args: []
  kwargs:
    input_array: $add_noise_step.output
    transform: $transform_type # User Parameter

log_stats_3:
  task: print_stats # Invoking this plugin task a third time
  args: []
  kwargs:
    input_array: $transform_step.output # This is the output from Task 5
    plugin_step_name: "Task 3: Transforming the array"

<My Console Input/Output>

Plugin 1 was successfully completed. Output value was .7432 with parameter "random".

Note

Use unique comments, such as # [docs:start] and # [docs:end], in Python files (or the appropriate comment style for other languages) to only grab sections of code. These tags must be present in the code files.

In literalincludes, use the following syntax:

.. literalinclude:: python_file.py
   :language: python
   :start-after: # my-start-comment
   :end-before: # my-end-comment

Tabs for alternate paths

Tabs can be used for alternate instructions (e.g., GUI vs. Python client), as demonstrated below.

RenderedRST Source

GUIPython Client

Login using the GUI

GUIPython Client

Create a plugin in the GUI

Note

To have tabs synchronize together (like above example), use the .. group-tab:: syntax and make sure the tabs are named the exact same thing across iterations, i.e. .. group-tab:: Python Client wil be synchronized with another instanced of .. group-tab:: Python Client. If synchronization is not required, replace group-tab with tab.

Cross-references

Use explicit references (.. _label-name:) together with :ref:. This is the most reliable way to link between pages, since it does not depend on the document being in a .. toctree::. Note that displayed link text is equal to the page title but can be overridden using the <> syntax (see example).

RenderedRST Source

See more about Prepare Your Deployment in the dedicated page.

See more about My custom reference name for the same page in the dedicated page.

Note

To make a :ref: work, the target document must define a label (.. _label-name:) in the .rst file. Without a label, :link-type: ref cannot resolve.

Place the label near the top of the file you want to link to. For example:

.. _tutorial-1:

Tutorial 1
==========

Continue with the rest of the document...

.. _tutorial-1-header-2:

Tutorial 1 Header 2:
----------------------

Continue with the rest of the document...

With those two labels in the .rst file, you could link to the page / specific section with:

:ref:`tutorial-1`
:ref:`tutorial-1-header-2`

Notice that the leading underscore is omitted when using a :ref:.

Important

To standardize the label names for .rst references, use this formula:

_{page_type}-{page_title}-{optionally: header_title}

i.e.

_{tutorial}-{running-hello-world}-{step-2-create-a-plugin}

Examples:

• _how-to-create-plugins

• _tutorial-adding-inputs-and-outputs

• _reference-plugins

• _reference-plugins-plugin-function-tasks → includes header_title

Notice that we only use dashes, no underscores. Use the page type in the singular, e.g. explanation, reference, how-to, tutorial.

Additional Sphinx Elements

The following elements are currently unused but available for documentation.

Collapsible content

Collapsible admonitions could be used for long sections of code or optional context.

RenderedRST Source

Python Plugin Code (long)

import numpy as np
import structlog
from dioptra import pyplugs

LOGGER = structlog.get_logger()

# Helper function - not registered as a Dioptra plugin task
def sqrt(num:float)->float:
  return np.sqrt(num)

@pyplugs.register
def sample_normal_distribution_print_mean(
              random_seed: int = 0,
              mean: float = 0,
              var: float = 1,
              sample_size: int = 100) -> np.ndarray :

  rng = np.random.default_rng(seed=random_seed)
  std_dev = sqrt(var)
  draws = rng.normal(loc=mean, scale=std_dev, size=sample_size)
  draws_mean = np.mean(draws)
  diff = np.abs(mean-draws_mean)
  pct = 100*diff/mean

  LOGGER.info(
      "Plugin 2 - "
      f"The mean value of the draws was {draws_mean:.4f}, "
      f"which was {diff:.4f} different from the passed-in mean ({pct:.2f}%). "
      "[Passed-in Parameters]"
      f"Seed: {random_seed}; "
      f"Mean: {mean}; "
      f"Variance: {var}; "
      f"Sample Size: {sample_size};"
      )

  return draws

Sphinx Page Options

1. Remove the page specific table of contents on the right-hand side:

   • Place :html_theme.sidebar_secondary.remove: in the .rst file, ideally at the top.

Cards, grids, and callouts

sphinx-design provides cards and grids for menus or callouts.

RenderedRST Source

Run Dioptra

Step-by-step instructions for running Dioptra.

Installation

How to install Dioptra locally.

Get Container Images

Download or build container images.

Additional Configuration

Optional configuration steps after setup.
