Scenario 1.2: Service Utilization

Purpose

Identify and log protocol-specific distinct characteristics of Layer 5, 6, and 7-type service utilization and consumption information.

Description

This demonstration shows how decrypted traffic can be utilized to identify, collect, and report on layer-specific information in an HTTP stack. A web request made through the browser is used to produce HTTPS traffic in order to demonstrate the visibility of the connection information at various levels.

Procedure

1. Use a browser to navigate to the URL of the testapp server.

2. Observe the layer-specific decrypted traffic in NetScout’s Packet Analysis tool.

Expected Outcome

The decrypted traffic is visible in NetScout and the layer-specific information is present.

Passive				Active
Bounded Life-Time		Exported Session Key		Break & Inspect (Mira)		Break and Inspect (F5)
Real-Time	Post-Facto	Real-Time	Post-Facto	Real-Time	Post-Facto	Real-Time	Post-Facto
Pass	Pass	Pass	Pass	Pass	Pass	Pass	Pass

Screenshots

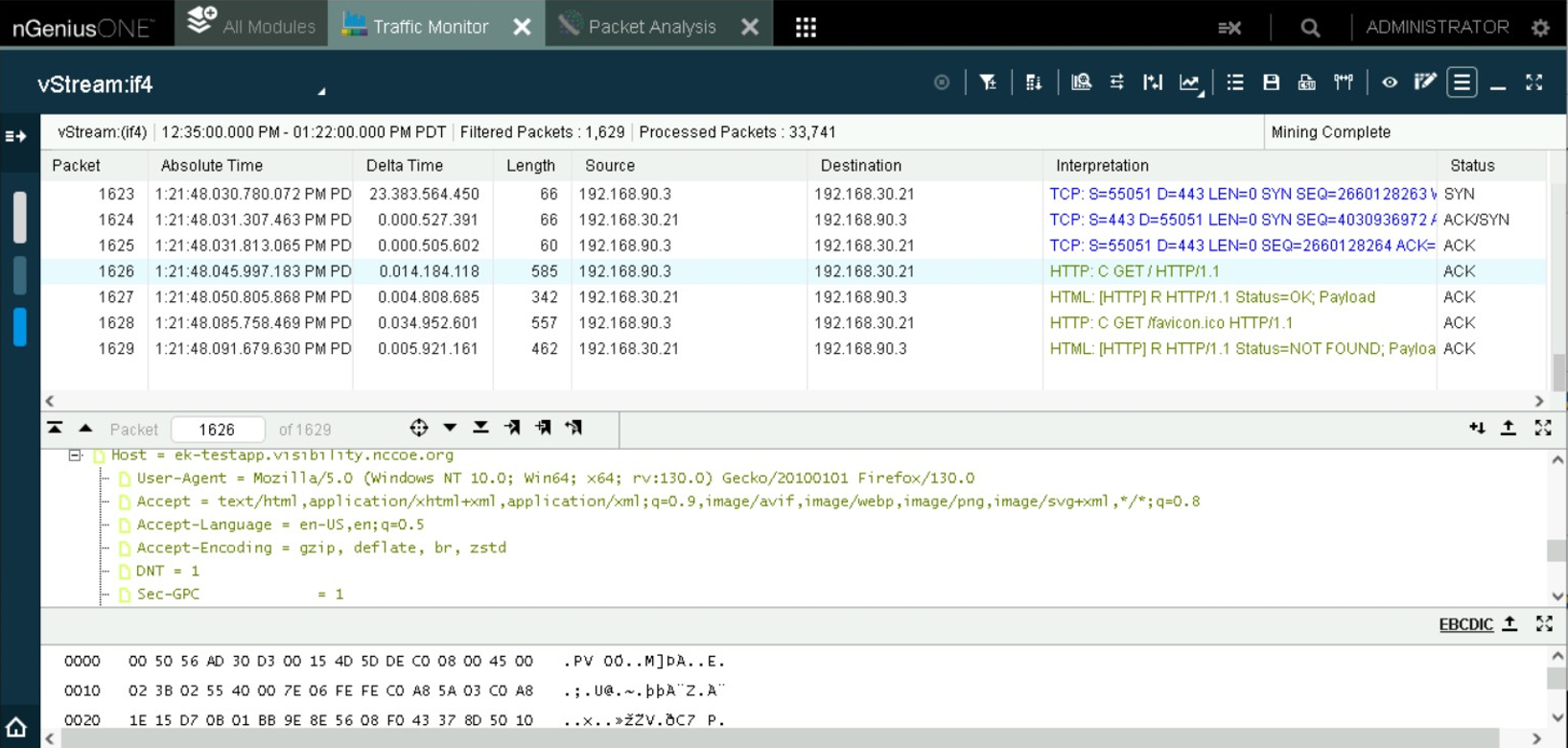

Layer specific information in a decrypted HTTP request.

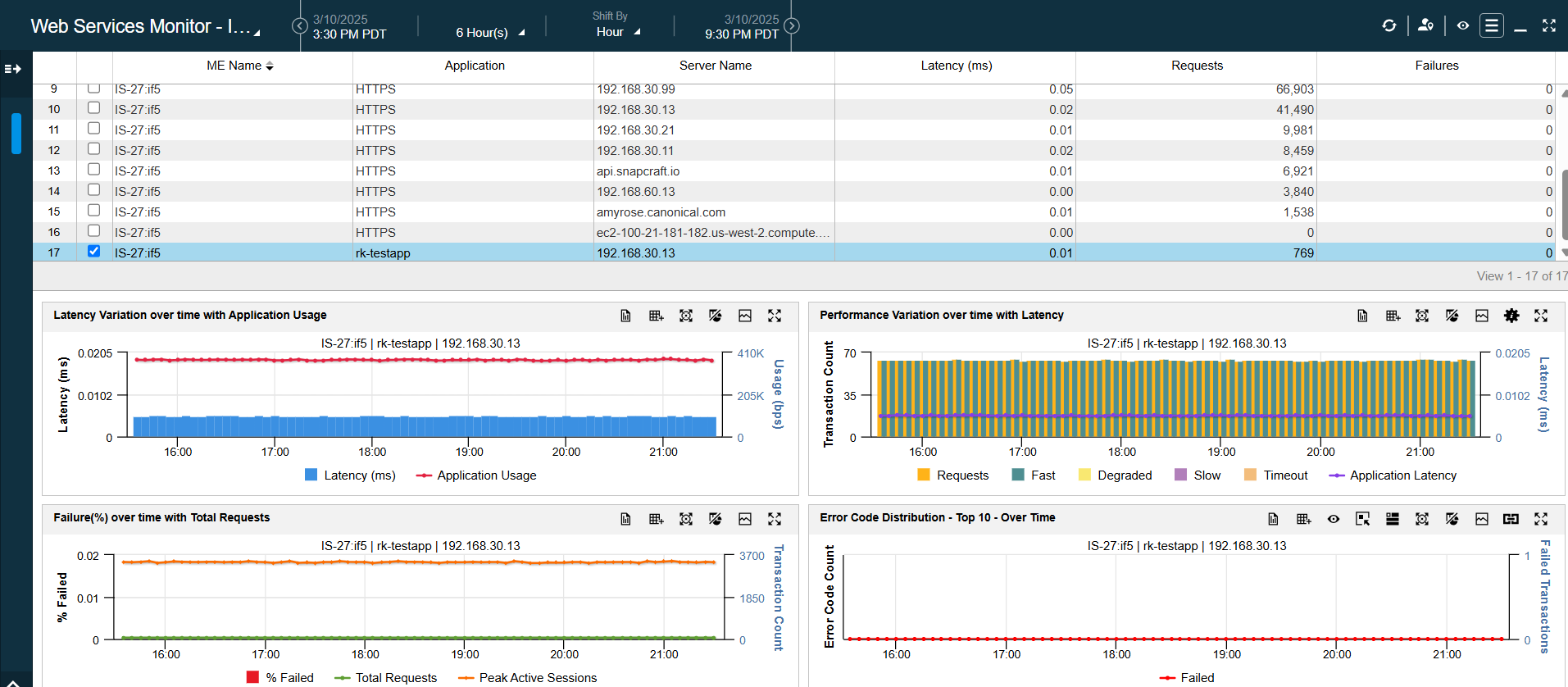

Statistics for decrypted HTTP traffic.
