3. Mapping SSDF to DevSecOps Notional Reference Model New

The NIST SSDF identifies foundational security principles to help organizations strengthen their secure software development practices. Specifically, it aims to:

• Protect all software components from tampering and unauthorized access;

• Produce well-secured software;

• Identify residual vulnerabilities in software releases; and

• Respond appropriately to discovered threats.

To demonstrate alignment between the SSDF and the Notional Reference Model for DevSecOps defined earlier in this document, this section provides a high-level mapping of the SSDF practices to the Notional Reference Model phases. This mapping provides insight into when each practice is performed within the Notional Reference Model.

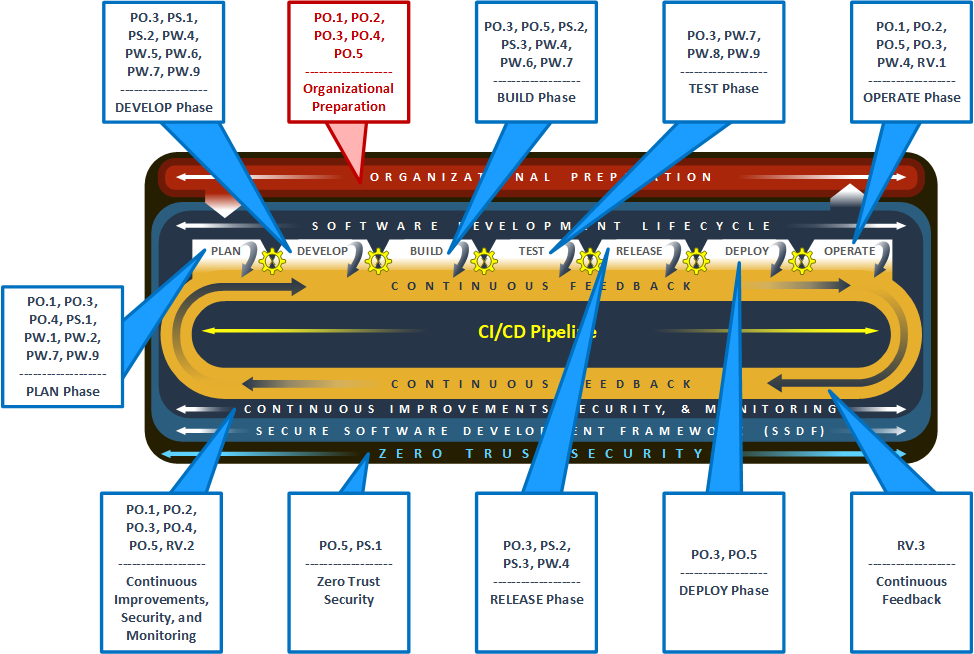

Fig. 3.1 Mapping the SSDF to the Notional Reference Model

The mapping is not a complete list of recommended tasks, as the individual tasks to fully achieve a given SSDF practice are unique to each organization. The SSDF document released by NIST can be used to help define those tasks.

3.1. Prepare the Organization (PO)

The practices within the SSDF group, Prepare the Organization (PO), focus on ensuring people, processes, and technology are prepared to perform secure software development at the organization level.

SSDF Practice	Notional Reference Model	Project’s Supporting Activities
PO.1: Define Security Requirements for Software Development	Organizational Preparation; Operate; Continuous Improvements, Security, and Monitoring	Identification, documentation, and continuous maintenance of comprehensive organizational-level security requirements that all development infrastructures, processes, and software being developed must follow.
PO.2: Implement Roles and Responsibilities	Organizational Preparation; Operate; Continuous Improvements, Security, and Monitoring	Security-related roles and personnel are identified and filled before development begins, enabling security to be at the forefront of every task performed and decision made.
PO.3: Implement Supporting Toolchains	Organizational Preparation; Plan; Develop; Build: Test; Release Deploy; Operate; Continuous Improvements, Security, and Monitoring	Components used throughout the development lifecycle are identified, installed, and configured such that secure development can be realized.
PO.4: Define and Use Criteria for Software Security Checks	Organizational Preparation; Continuous Improvements, Security, and Monitoring	Implementation of checks throughout the development lifecycle to make sure security practices are effective and components are being used properly.
PO.5: Implement and Maintain Secure Environments for Software Development	Organizational Preparation; Build; Operate; Continuous Improvements, Security, and Monitoring; Zero Trust Security	To enable secure development, isolated development environments are established and the components to be used are hardened.

3.2. Protect the Software (PS)

The practices within the SSDF group Protect the Software (PS) focus on protecting all components of organizational software from tampering and unauthorized access.

SSDF Practice	Notional Reference Model	Project’s Supporting Activities
PS.1: Protect All Forms of Code from Unauthorized Access and Tampering.	Plan; Develop; Zero Trust Security	Zero trust concepts are implemented throughout the development lifecycle guiding access to components such as Source Code Management and Cryptographic Key Management while also ensuring the principle of least privilege is at the core of all authorization decisions.
PS.2: Provide a Mechanism for Verifying Software Release Integrity.	Develop; Build; Release	Components such as Artifact Signing and Verification are used to create integrity verification information during the build process with such information being made available to acquirers as part of the software release through a Software Bill of Materials (SBOM).
PS.3: Archive and Protect Each Software Release.	Build; Release	Components such as the Configuration Management System are used to securely archive all necessary files and supporting data for each software release while collecting, safeguarding, and maintaining comprehensive provenance data for all components through a Software Bill of Materials (SBOM).

3.3. Produce Well-Secured Software (PW)

The practices within the SSDF group, Produce Well-Secured Software (PW), focus on minimizing vulnerabilities through secure design, coding, and testing.

SSDF Practice	Notional Reference Model	Project’s Supporting Activities
PW.1: Design Software to Meet Security Requirements and Mitigate Security Risks.	Plan	Components such as the Requirements Management System and the Threat Modelling System are used to design the software and assess the security risk of the design.
PW.2: Review the Software Design to Verify Compliance with Security Requirements and Risk Information	Plan	As part of the tasks to design the software during the plan phase, a review process is established to make sure the design satisfies all security requirements.
PW.3: (moved to PW.4)	n/a	n/a
PW.4: Reuse Existing, Well-Secured Software When Feasible Instead of Duplicating Functionality	Develop; Build; Operate; Release	All software libraries and modules leveraged by the development team are properly reviewed before being included and then monitored throughout the operational life of the software.
PW.5: Create Source Code by Adhering to Secure Coding Practices.	Develop	The development team follows secure coding practices, and components such as Lint Tool are used to review source code and identify potential issues.
PW.6: Configure the Compilation, Interpreter, and Build Processes to Improve Executable Security.	Develop; Build	The CI/CD Pipeline component utilizes compilers, interpreters, and build tools that offer executable security enhancements, and those features are required and implemented as part of standardized configurations.
PW.7: Review and/or Analyze Human-Readable Code to Identify Vulnerabilities and Verify Compliance with Security Requirements.	Plan; Develop; Build; Test	Components such as the SAST System are used along with manual code reviews to uncover security-related issues in the code, and all discovered issues are recorded and triaged within the Tracking System component.
PW.8: Test Executable Code to Identify Vulnerabilities and Verify Compliance with Security Requirements.	Test	Testing components are used to uncover vulnerabilities missed by previous reviews while ensuring results and remediations are documented in the development team’s tracking system.
PW.9: Configure Software to Have Secure Settings by Default	Plan; Develop; Test	The software is designed to be released with configuration settings that ensure secure operation at the time of installation. These configurations should be set by default and be tested to ensure they don’t inadvertently cause security weaknesses or operational issues.

3.4. Respond to Vulnerabilities (RV)

The practices within the SSDF group, Respond to Vulnerabilities (RV), focus on minimizing vulnerabilities through secure design, coding, and testing.

SSDF Practice	Notional Reference Model	Project’s Supporting Activities
RV.1: Identify and Confirm Vulnerabilities on an Ongoing Basis	Operate	Leverage components such as the Security Monitoring Systems to analyze the operating software for missed vulnerabilities as well as monitor public vulnerability repositories for newly discovered issues in external libraries, then create tickets for the development team to address discovered issues.
RV.2: Assess, Prioritize, and Remediate Vulnerabilities	Continuous Improvements, Security, and Monitoring	The Ticketing System component is used to continuously assess outstanding issues and schedule new development cycles to address the issues.
RV.3: Analyze Vulnerabilities to Identify Their Root Causes	Continuous Feedback	Analyze identified vulnerabilities to determine their root causes and subsequently reviewing and updating the development process to prevent or reduce the likelihood of those root causes recurring in future software development cycles.
