Appendix F. Dataflow Analysis

Appendix F. Dataflow Analysis#

This appendix presents the LINDDUN and PANOPTIC analyses for the complete example. The LINDDUN dataflow analysis was initially broken down in a manner similar, but not identical, to the dataflow diagrams, with separate analysis tables for the clinical and research use cases together with a table for their shared dataflows. The individual tables were integrated into a single table that was then sorted on the LINDDUN threat families. Separate PANOPTIC threat action mappings were generated for the clinical and research use cases and used to identify attack scenarios.

Dataflow Analysis for Clinical Use Case#

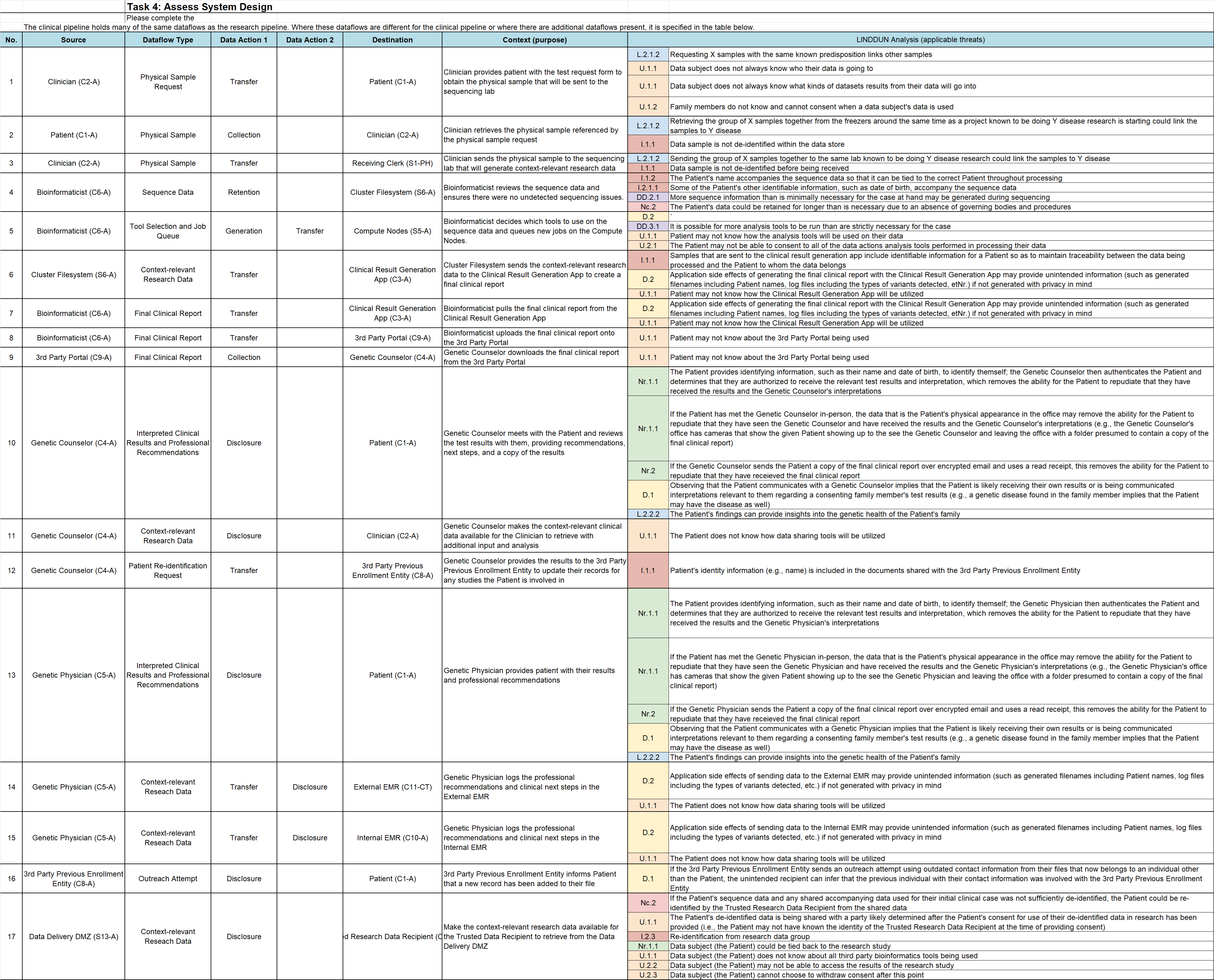

Analysis of dataflow elements for the clinical use case

Dataflow Analysis for Research Use Case#

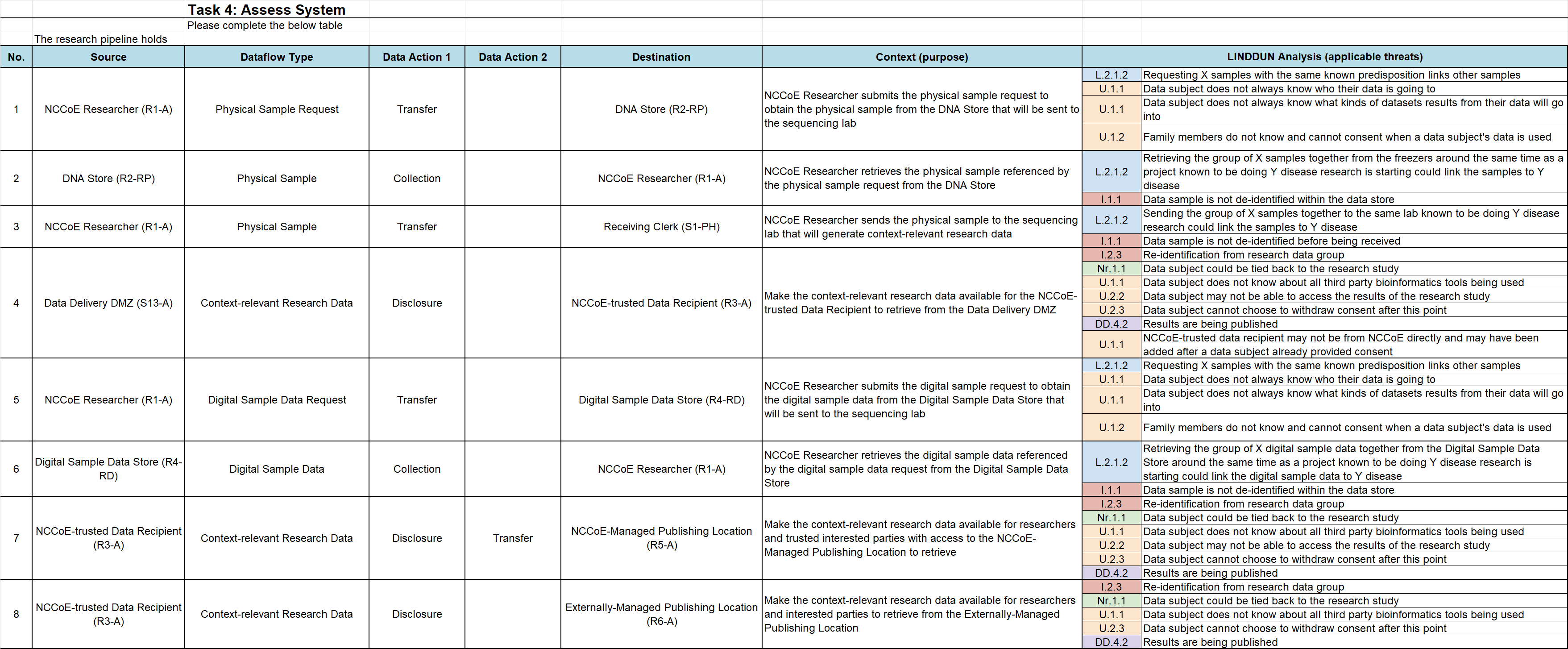

Analysis of dataflow elements for the research use case

Shared Dataflow Analysis#

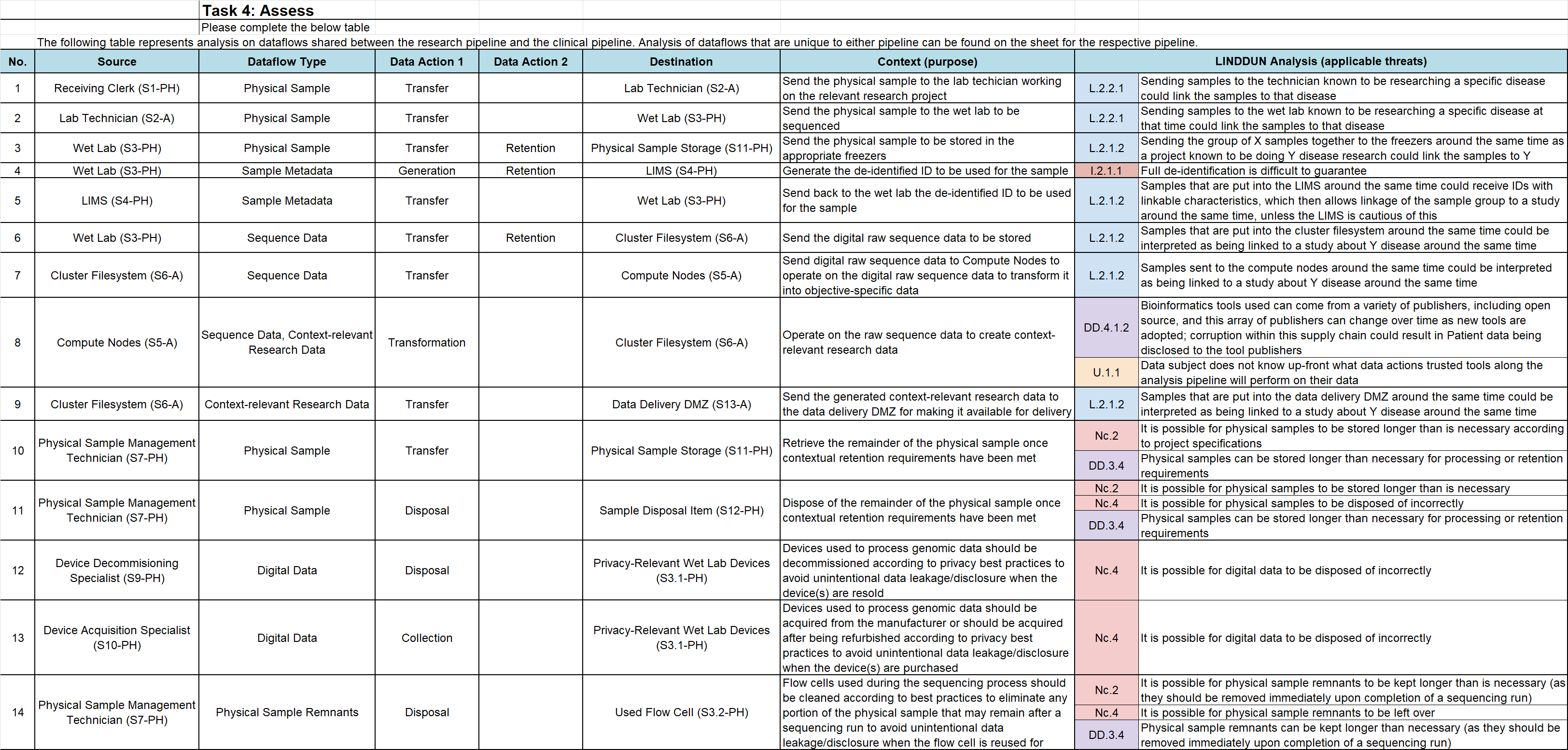

Analysis of shared dataflow elements for the clinical and research use cases

Integrated and Sorted Dataflow Analysis#

Analysis results including data action, source, destination, and context

PANOPTIC Privacy Activities Mapping for Clinical Use Case#

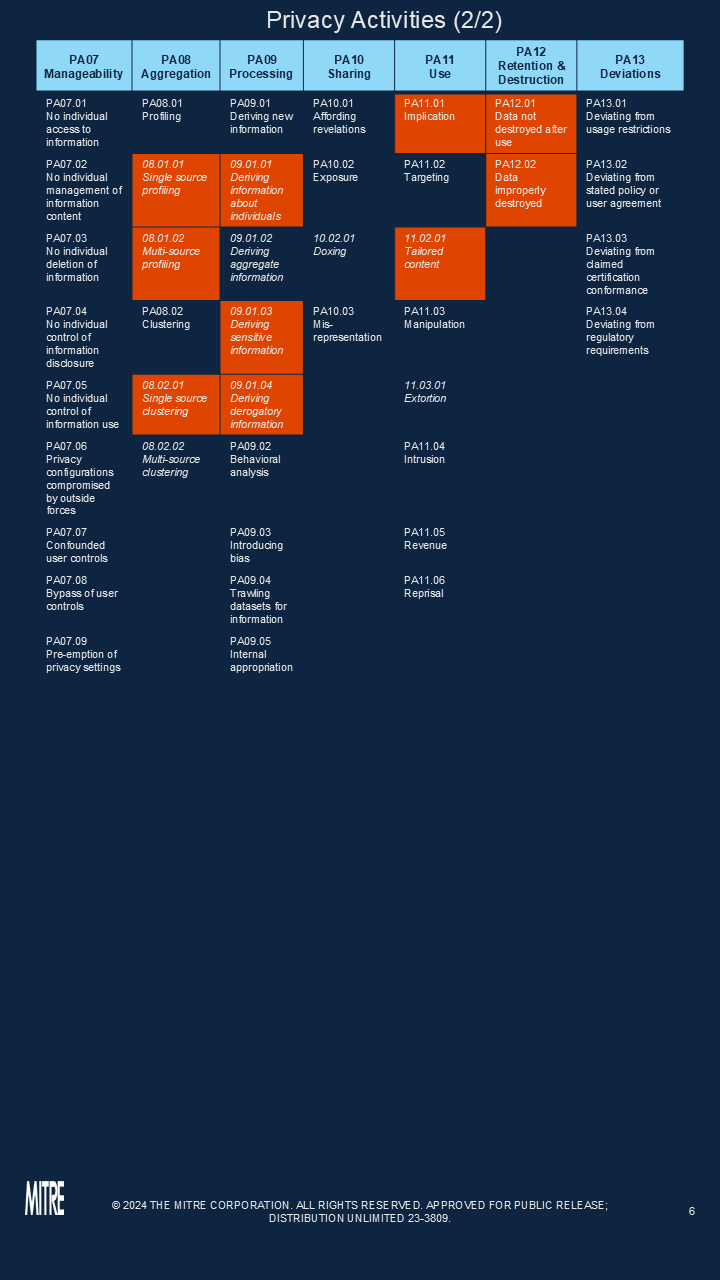

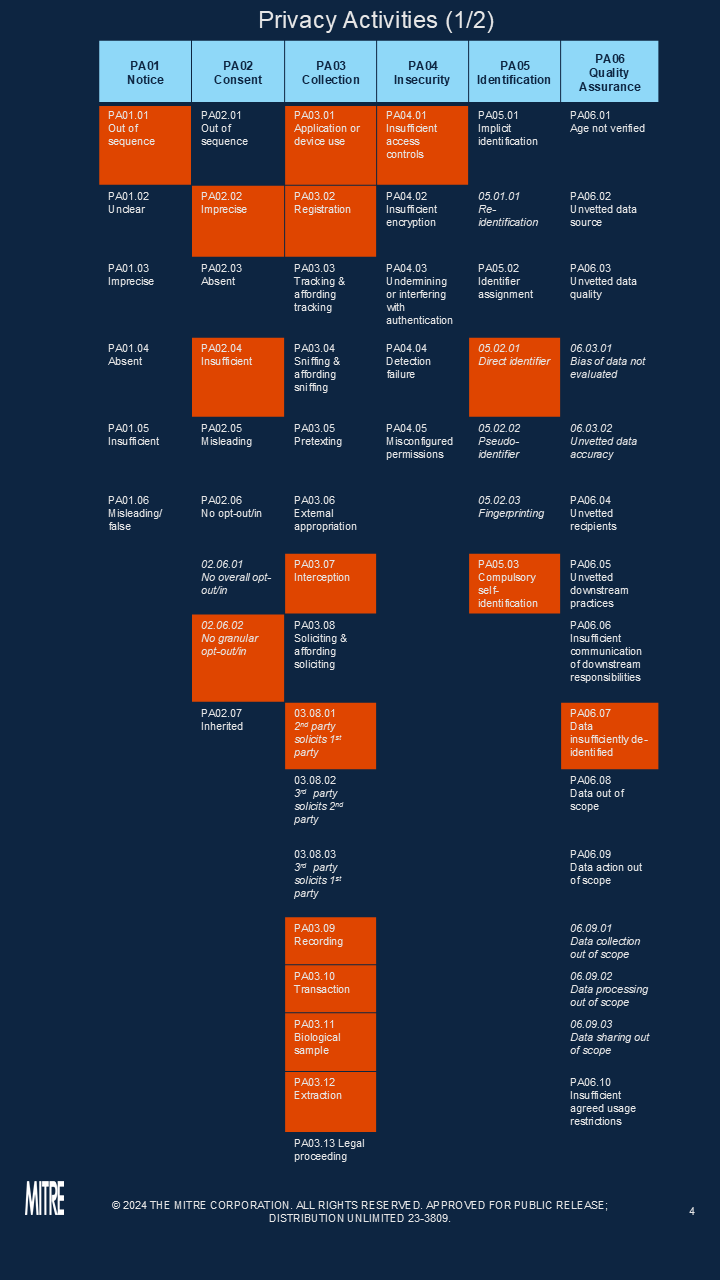

Left hand side of table that the PANOPTIC Privacy Activities highlighting elements of the Panoptic tables for Clinical Use Case Right hand side of table that the PANOPTIC Privacy Activities highlighting elements of the Panoptic tables for Clinical Use Case

PANOPTIC Privacy Activities Mapping for Research Use Case#

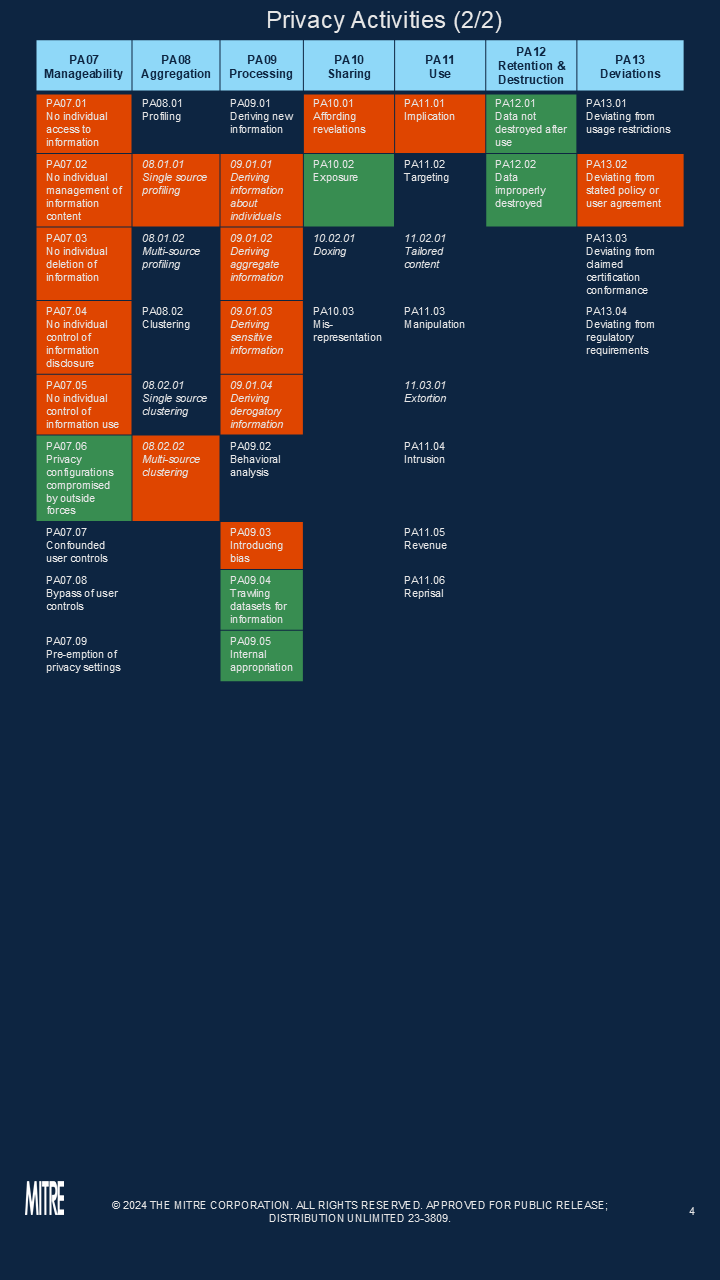

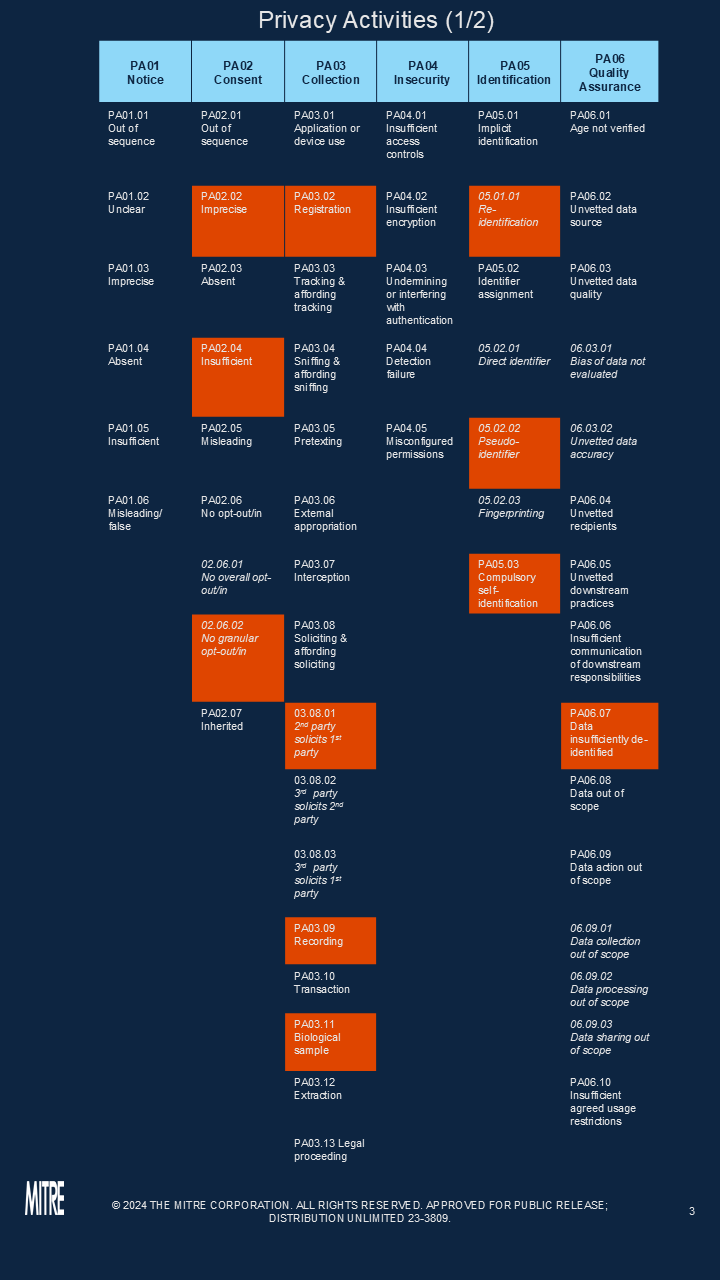

Left hand side of table that the PANOPTIC Privacy Activities highlighting elements of the Panoptic tables for Research Use Case Right hand side of table that the PANOPTIC Privacy Activities highlighting elements of the Panoptic tables for Research Use Case

Scenarios#

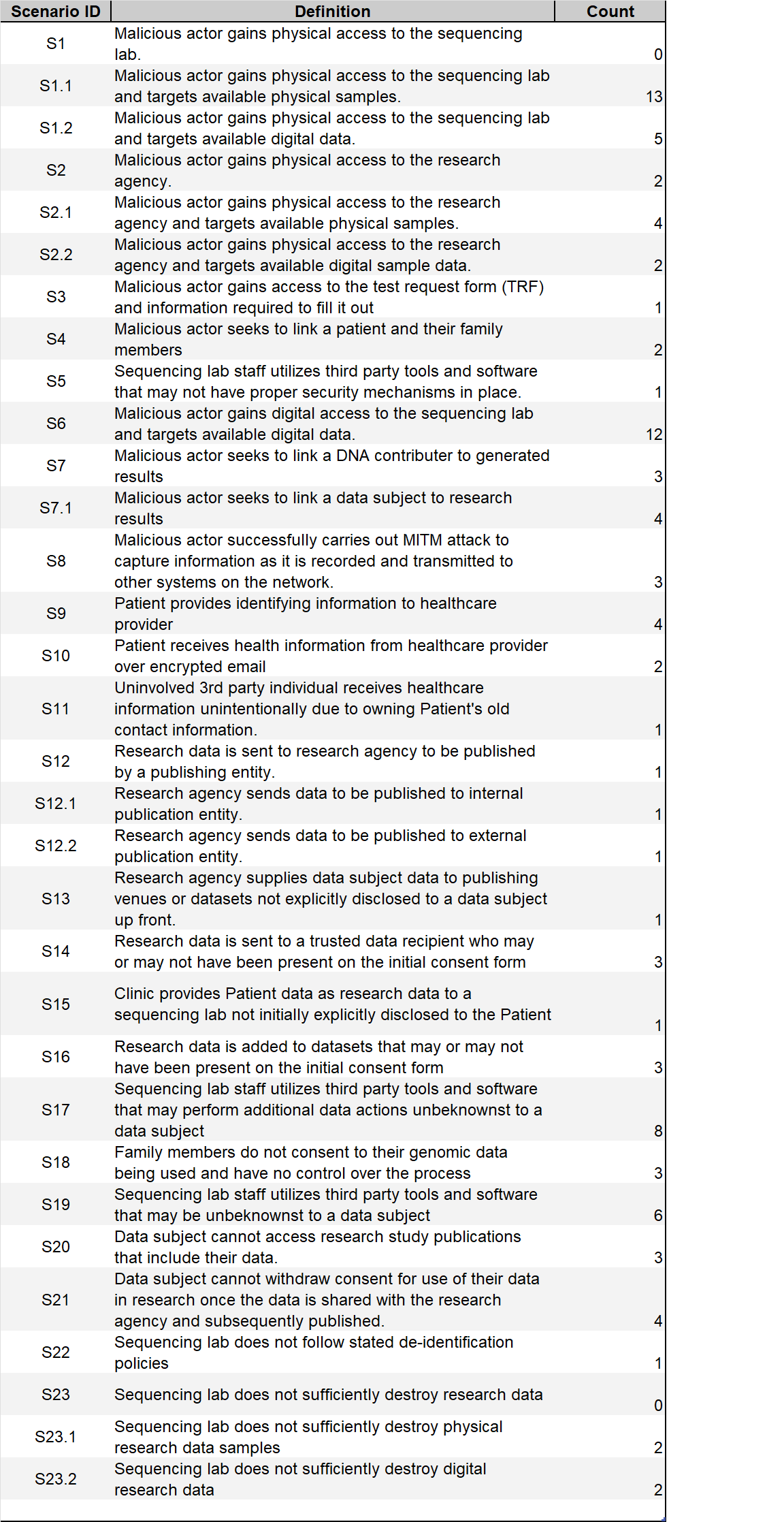

Description of Scenarios including number, definition of scenario, and count of occurences
