BF Specification of CVE-2015-0235 — GHOST — Heap Buffer Overflow in GNU glibc v2.2, and other v2.x before v2.18

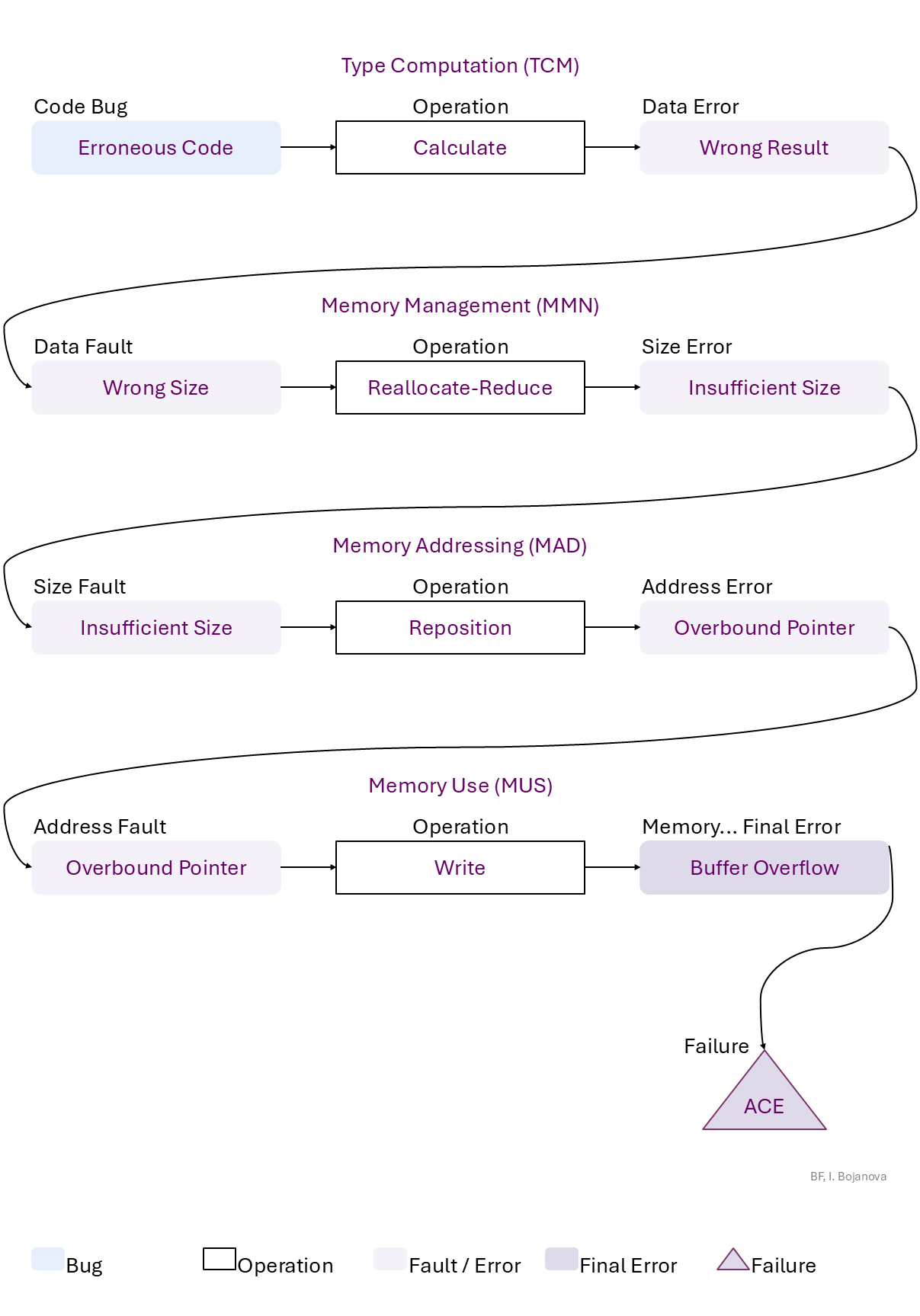

Missing factor (the size of '*h_alias_ptr') while calculating the 'size_needed' size of a buffer leads to reallocation of not enough memory, allowing a pointer reposition over its bounds, which, when used in 'strcpy()' leads to a heap buffer overflow. If exploited, this can lead to arbitrary code execution (ACE) -- Everything Could be Lost.

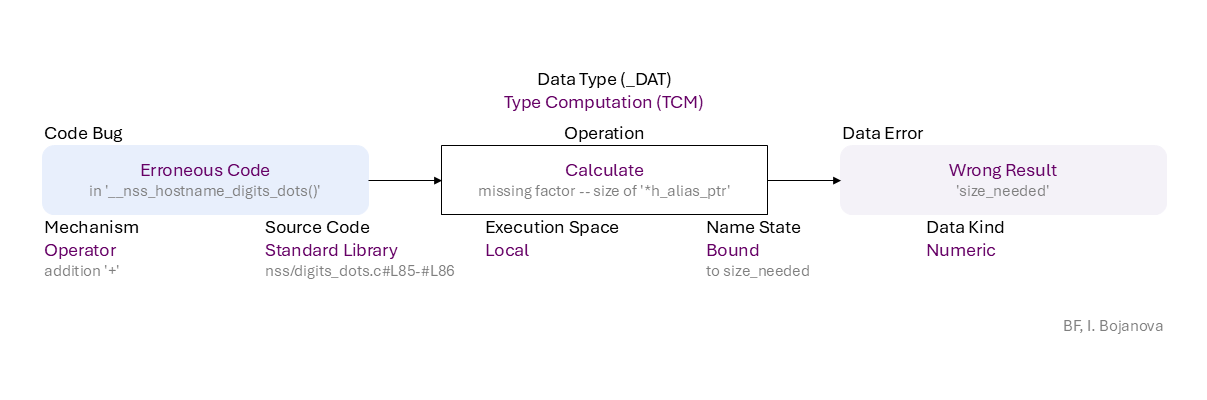

Erroneous Code (in in '__nss_hostname_digits_dots()') to Calculate (missing factor -- size of '*h_alias_ptr') of Bound name (to size_needed) of Numeric data using Operator mechanism (addition '+') in Standard Library source code (nss/digits_dots.c#L85-#L86) in Local execution space leads to Wrong Result ('size_needed') error, which propagates to

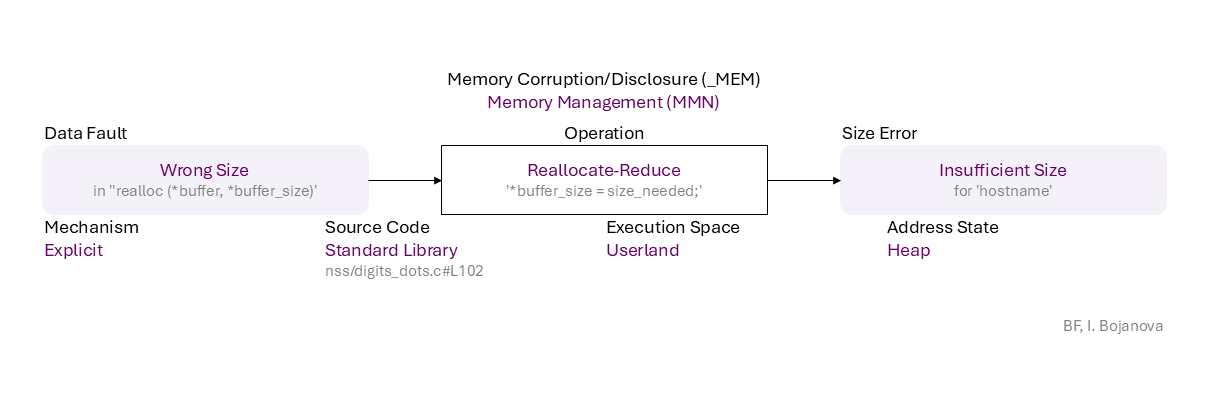

Wrong Size (in in ''realloc (*buffer, *buffer_size)') to Reallocate-Reduce ('*buffer_size = size_needed;') with Used size using Explicit mechanism in Standard Library source code (nss/digits_dots.c#L102) in Userland execution space that results in Insufficient Size (for 'hostname') error, which propagates to

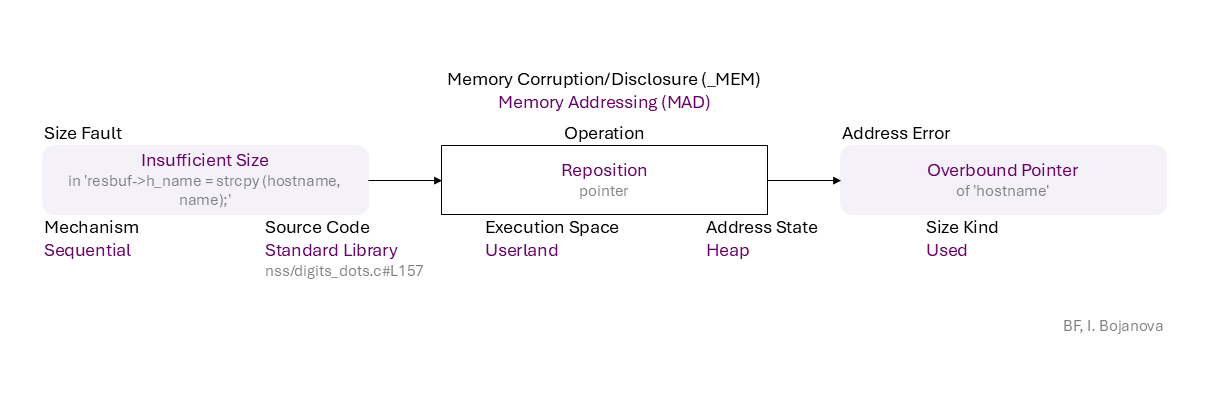

Insufficient Size (in in 'resbuf->h_name = strcpy (hostname, name);') to Reposition (pointer) on Heap with Actual size using Sequential mechanism in Standard Library source code (nss/digits_dots.c#L157) in Userland execution space that results in Overbound Pointer (of 'hostname') error, which propagates to

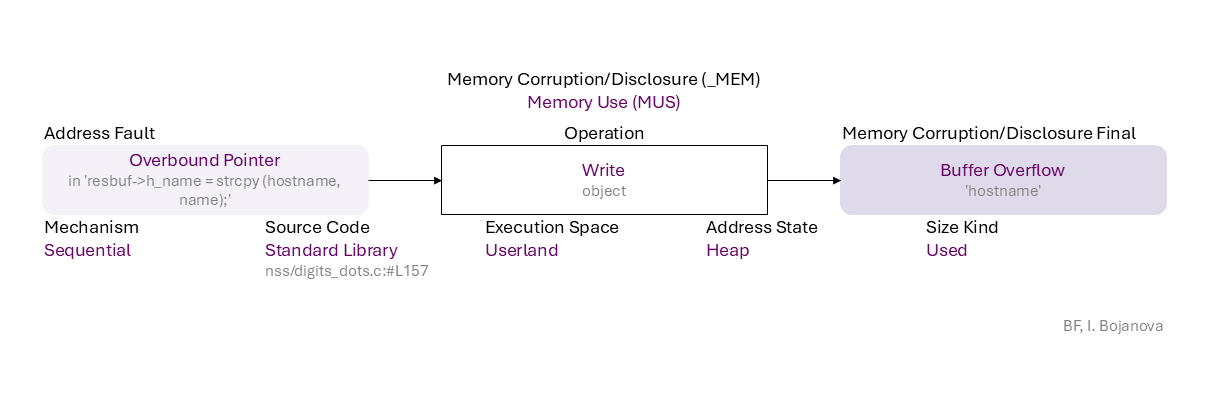

Overbound Pointer (in in 'resbuf->h_name = strcpy (hostname, name);') to Write (object) on Heap with Used size using Sequential mechanism in Standard Library source code (nss/digits_dots.c:#L157) in Userland execution space that results in Buffer Overflow ('hostname') final error, which can be exploited toward

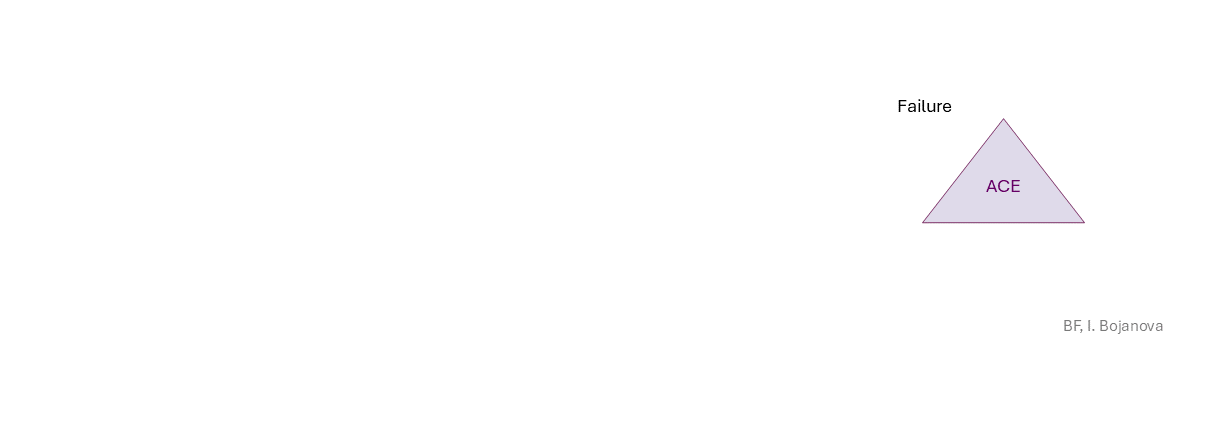

Arbitrary Code Execution (ACE) (Everything Could be Lost) security failure.
Wrong Size (in in ''realloc (*buffer, *buffer_size)') to Reallocate-Reduce ('*buffer_size = size_needed;') with Used size using Explicit mechanism in Standard Library source code (nss/digits_dots.c#L102) in Userland execution space that results in Insufficient Size (for 'hostname') error, which propagates to
Insufficient Size (in in 'resbuf->h_name = strcpy (hostname, name);') to Reposition (pointer) on Heap with Actual size using Sequential mechanism in Standard Library source code (nss/digits_dots.c#L157) in Userland execution space that results in Overbound Pointer (of 'hostname') error, which propagates to
Overbound Pointer (in in 'resbuf->h_name = strcpy (hostname, name);') to Write (object) on Heap with Used size using Sequential mechanism in Standard Library source code (nss/digits_dots.c:#L157) in Userland execution space that results in Buffer Overflow ('hostname') final error, which can be exploited toward
Arbitrary Code Execution (ACE) (Everything Could be Lost) security failure.
|
| Class | Definition |
| TCM | Type Computation (TCM) class – An arithmetic expression (over numbers, strings, or pointers) is calculated improperly, or a boolean condition is evaluated improperly. |
| MMN | Memory Management (MMN) class – An object is allocated, resized, or deallocated improperly. |
| MAD | Memory Addressing (MAD) class – The pointer to an object is initialized, dereferenced, repositioned, or reassigned to an improper memory address. |
| MUS | Memory Use (MUS) class – An object is initialized, read, written, or cleared improperly. |
| Operation | Definition |
| Calculate | Calculate operation – Find the result of a numeric, pointer, or string operation. |
| Reallocate-Reduce | Reallocate-Reduce operation – Reserve a new smaller space in memory for an object at a new address, reassign the pointer, and release the previous piece of memory. |
| Reposition | Reposition operation – Change the pointer to another position inside its object. |
| Write | Write operation – Change the data value of an object in memory to another meaningful value. |
| Cause/Consequence | Definition |
| Code Bug | Code Bug type – An error in the implementation of an operation – proper operands over an improper operation. It is the roor cause of a security vulnerability. Must be fixed to resolve the vulnerability. |
| Erroneous Code | Erroneous Code bug - There is a coding error in the implementation of the operation. |
| Data Error/Fault | Data error (or fault) type – The data of an object has harmed semantics or inconsistent or wrong value. |
| Wrong Result | Wrong Result error (or fault) – Incorrect value – from type conversion or computation. |
| Wrong Size | Wrong Size error (or fault) – The value used as size or length (i.e., the number of elements) does not match the object's memory size or length (e.g., to limit a pointer reposition or index increment/decrement in a repetition statement). |
| Insufficient Size | |
| Overbound Pointer | |
| Injection Final Error | Injection final error/exploit vector type – An exploitable or undefined system behavior caused by validation or sanitization bugs. |
| Buffer Overflow | |
| Operation Attribute | Definition |
| Mechanism | Mechanism operation attribute type – Shows how the operation with a bug or faulty operand is performed. |
| Operator | Operator operation attribute – The operation is via a function with a symbolic name that implements a mathematical, relational or logical operation. |
| Explicit | Explicit operation attribute – The operation is via a function/method call. |
| Sequential | Sequential operation attribute – The operation is via iterating over the object elements. |
| Source Code | Source Code operation attribute type – Shows where the code of the operation with a bug or faulty operand resides within the software, firmware, or hardware. |
| Standard Library | Standard Library operation attribute – The operation code is in the standard library for a particular programming language. |
| Execution Space | Execution Space operation attribute type – Shows where the operation with a bug or faulty operand is executed and the privilege level at which it runs. |
| Local | Local operation attribute – The bugged code runs in an environment with access control policy with limited (local user) permission. |
| Userland | Userland operation attribute – The bugged code runs in an environment with privilege levels, but in unprivileged mode (e.g., ring 3 in x86 architecture). |
| Operand Attribute | Definition |
| Name State | Name State operand attribute type – Shows what the stage of the entity name is. |
| Bound | Bound operand attribute – The name is linked to a declared (or inferred) data type, a defined object's data, or a called function implementation. |
| Data Kind | Data Kind operand attribute type – Shows what the type or category of data is. |
| Numeric | Numeric operand attribute – A number – a sequence of digits. |
| Size Kind | Size Kind operand attribute type – Shows what is used as the size or length (i.e., the number of elements) of an object - e.g., as the limit for traversal over the elements. |
| Used | Used operand attribute – A supplied value to be used as the size or length (i.e., the number of elements) of an object. |
| Actual | Actual operand attribute – The real size or length (i.e., the number of elements) of the allocated memory for an object. |
| Address State | Address State operand attribute type – Shows where the address is (i.e., its location) in the memory layout. |
| Heap | The object is a dynamically allocated data structure (e.g., via malloc() or new). |
| BFFailure | Definition |
| ACE | Arbitrary Code Execution (ACE) – Execution of unauthorized commands or code execution that could lead to everything being lost; remote code execution (RCE) is a sub-case of ACE on a target system or device from a remote location, typically over a network. |
