Using the Pipeline Builder App#

The Pipeline Builder is a web-based graphical user interface for creating, editing, and managing data processing pipelines in AFL. This interactive tool allows you to drag and drop pipeline operations, connect them visually, and configure their parameters through an intuitive interface.

Overview#

The Pipeline Builder provides a visual way to construct complex data processing workflows without writing code. Key features include:

  • Drag-and-drop interface: Add operations by dragging from the sidebar

  • Visual connections: Connect operations by drawing lines between input and output connectors

  • Parameter editing: Configure operation parameters through a dedicated pane

  • Prefab templates: Load and save pre-built pipeline templates

  • Real-time validation: Automatic connectivity analysis and error checking

  • Export functionality: Generate pipeline JSON for use in code

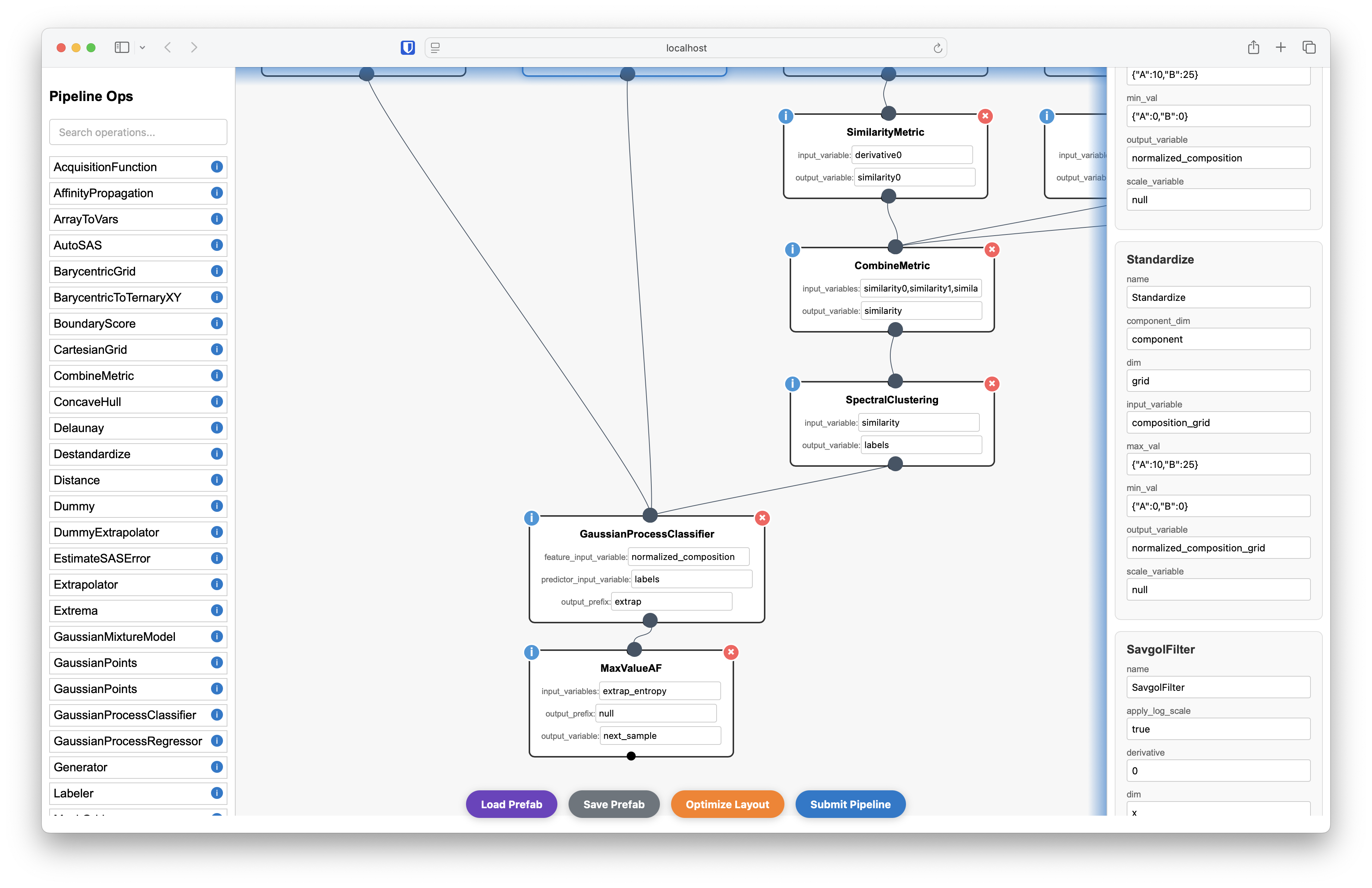

Pipeline Builder Interface

The Pipeline Builder interface showing the main components: operation sidebar (left), canvas (center), and parameter pane (right)#

Launching the Pipeline Builder#

The Pipeline Builder is accessed through the DoubleAgentDriver APIServer. Follow these steps to launch it:

Step 1: Start the DoubleAgentDriver APIServer#

First, you need to have a running DoubleAgentDriver APIServer. You can start one programmatically:

python -m AFL.double_agent.AgentDriver

or by using the AFL-andon application

Step 2: Access the Web Interface#

Once the server is running, open your web browser and navigate to the server URL (typically http://localhost:5051). You’ll see the APIServer web interface.

Step 3: Open the Pipeline Builder#

In the APIServer web interface, you’ll find a “Pipeline Builder” link in the useful links section. Click this link to open the Pipeline Builder application in a new tab or window.

Alternatively, you can access it directly at: http://localhost:5051/pipeline_builder

Interface Components#

The Pipeline Builder interface consists of three main areas:

1. Operations Sidebar (Left)#

The left sidebar contains all available pipeline operations organized by category. Each operation is displayed as a draggable tile showing:

  • Operation name

  • Brief description

  • Input/output variable information

2. Canvas (Center)#

The main canvas is where you build your pipeline by:

  • Dragging operations from the sidebar

  • Positioning them visually

  • Drawing connections between operations

  • Selecting operations for parameter editing

3. Parameters Pane (Right)#

The right pane shows detailed parameters for the currently selected operation, allowing you to:

  • Edit operation parameters

  • Configure input/output variable names

  • View operation documentation

Building Your First Pipeline#

Let’s walk through creating a simple data processing pipeline:

Step 1: Add Operations#

  1. Drag an operation from the sidebar to the canvas

  2. Position it where you want it in your workflow

  3. Repeat for additional operations

Step 2: Connect Operations#

Operations have input (top) and output (bottom) connectors:

  1. Click and drag from an output connector (bottom circle) of one operation

  2. Drag to an input connector (top circle) of another operation

  3. Release to create the connection

The system will automatically match operations based on variable names.

Step 3: Configure Parameters#

  1. Click on an operation to select it (it will be highlighted in blue)

  2. View parameters in the right pane

  3. Edit values as needed for your use case

  4. Set variable names to control data flow between operations

Key Features and Tools#

Canvas Navigation#

  • Pan: Click and drag on empty canvas space to move around

  • Zoom: Use mouse wheel to zoom in/out

  • Select: Click on operations to select them

  • Multi-select: Hold Ctrl/Cmd and click to select multiple operations

Bottom Action Buttons#

The bottom of the interface contains several action buttons:

  • Copy: Copy selected operations to clipboard

  • Paste: Paste copied operations to canvas

  • Load Prefab: Load a pre-built pipeline template

  • Optimize Layout: Automatically arrange operations for better visual flow

  • Submit: Send the pipeline to the server for execution or saving

Operation Management#

  • Delete: Click the red ‘X’ button on any operation to remove it

  • Move: Drag operations around the canvas to reorganize

  • Duplicate: Copy and paste operations to create duplicates

Working with Prefabs#

Prefabs are pre-built pipeline templates that can save time for common workflows:

Loading a Prefab#

  1. Click “Load Prefab” button at the bottom

  2. Select from available prefab templates

  3. Confirm to load the prefab onto the canvas

The prefab will be loaded with all operations and connections pre-configured.

Saving a Prefab#

  1. Build your pipeline on the canvas

  2. Click “Submit” and choose the save option

  3. Enter a name for your prefab

  4. Confirm to save it for future use

Exporting and Using Pipelines#

Once you’ve built your pipeline in the visual interface, you can export it for use in your code:

Export Pipeline JSON#

  1. Complete your pipeline design

  2. Click “Submit” at the bottom

  3. Copy the generated JSON from the output

Tips and Best Practices#

Variable Naming#

  • Use descriptive names for variables to make connections clear

  • Be consistent with naming conventions across operations

  • Match output variables of one operation to input variables of the next

Conclusion#

The Pipeline Builder provides a powerful visual interface for creating data processing workflows in AFL. By combining drag-and-drop simplicity with the full power of AFL’s pipeline operations, it enables both beginners and experts to rapidly prototype and deploy complex data analysis pipelines.

For more advanced pipeline development, see the other how-to guides in this documentation, including:
